YD34063 - DC TO DC CONVERTER CONTROLLER

YD34063 Description

www.DataSheet4U.com YOUDA INTEGRATED CIRCUIT YD34063 DC TO DC CONVERTER CONTROLLER *YD34063 .
The YD34063 is a monolithic regulator subsystem intended for use as DC to DC converter: This device contains a temperature compensated band-gap refere.

YD34063 Features

* Operation From 3.0V to 40V
* Short Circuit Current Limiting
* Low Standby Current
* Output Switch Current Of 1.5A Without External Transistors
* Frequency Of Operation From 100Hz to 100kHz
* Step-up, Step-down or Inverting Switch Regulators BLOCK DIAGRAM E 1 T1 2 A 3 4 C IS CT

📥 Download Datasheet

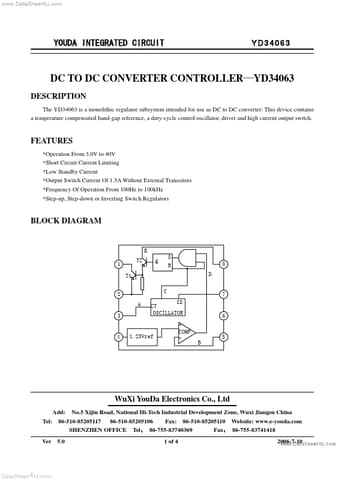

Preview of YD34063 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
YD34063
Manufacturer
Wuxi Youda electronics
File Size
236.79 KB
Datasheet
YD34063_WuxiYoudaelectronics.pdf
Description
DC TO DC CONVERTER CONTROLLER
