C2M0040120D Silicon Carbide Power MOSFET

Wolfspeed

C2M0040120D Description

C2M0040120D Silicon Carbide Power MOSFET C2MTM MOSFET Technology N-Channel Enhancement Mode .

C2M0040120D Features

* High Blocking Voltage with Low On-Resistance
* High Speed Switching with Low Capacitances
* Easy to Parallel and Simple to Drive
* Resistant to Latch-Up
* Halogen Free, RoHS Compliant 123 Wolfspeed, Inc. is in the process of rebranding its products and rela

C2M0040120D Applications

* Solar inverters
* Switch Mode Power Supplies
* High Voltage DC/DC converters
* Battery Chargers
* Motor Drive
* Pulsed Power Applications Benefits
* Higher system efficiency
* Reduce cooling requirements
* Increase power de

📥 Download Datasheet

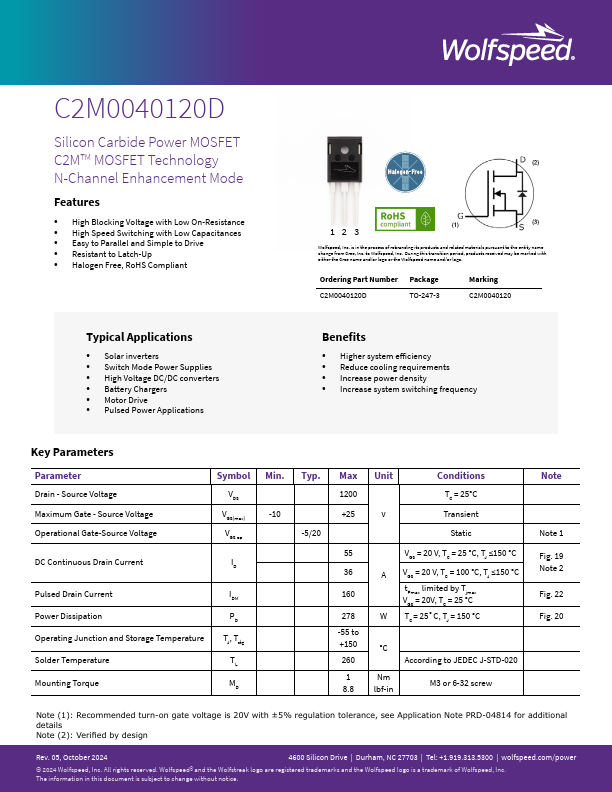

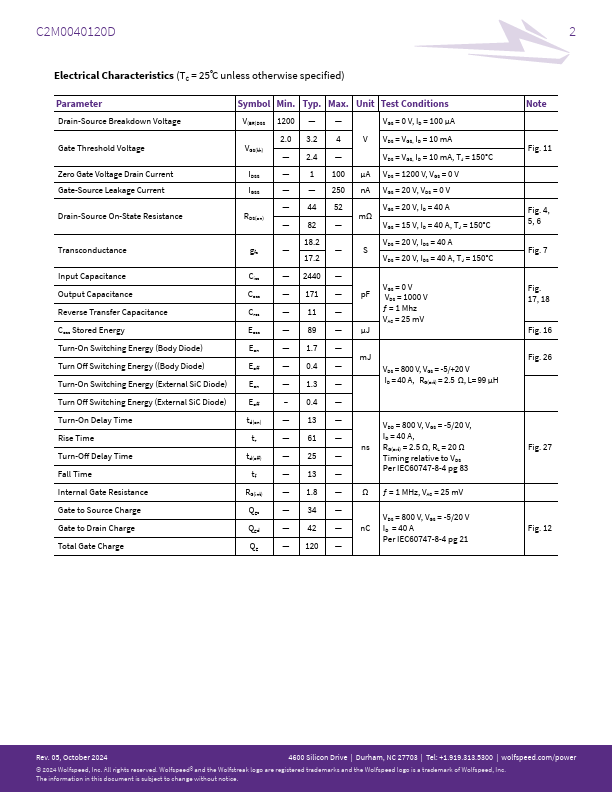

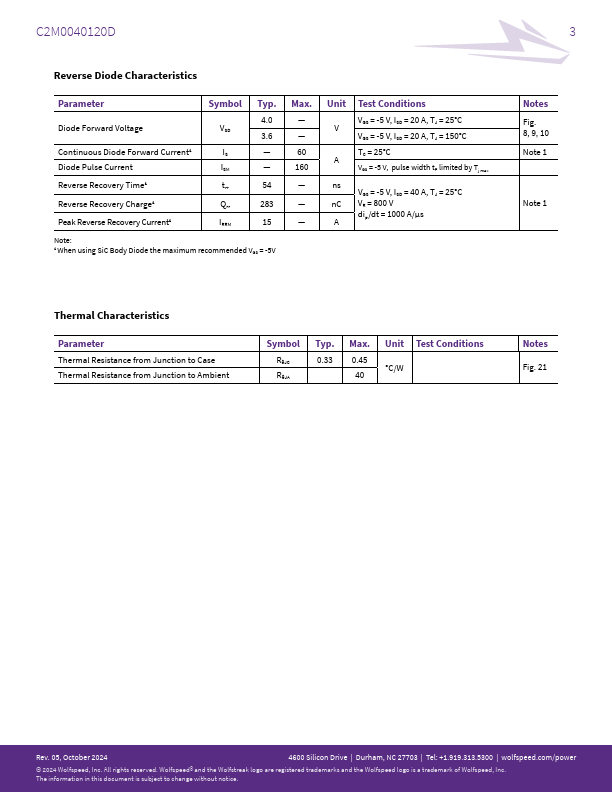

C2M0040120D Datasheet Preview — Preview of C2M0040120D PDF

Datasheet Details

Part number: C2M0040120D
Manufacturer: Wolfspeed
File Size: 0.96 MB
Datasheet: C2M0040120D-Wolfspeed.pdf
Description: Silicon Carbide Power MOSFET
