BUT12AF - SILICON DIFFUSED POWER TRANSISTOR(GENERAL DESCRIPTION)

The BUT12AF by Wing Shing Computer Components is a SILICON DIFFUSED POWER TRANSISTOR(GENERAL DESCRIPTION). Below is the official datasheet preview.

📥 Download Datasheet

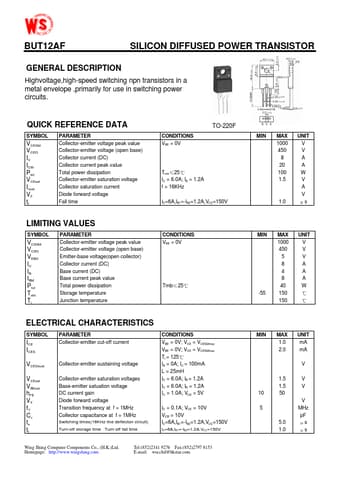

Official preview page of the BUT12AF SILICON DIFFUSED POWER TRANSISTOR(GENERAL DESCRIPTION) datasheet (Wing Shing Computer Components).

Datasheet Details

Part number BUT12AF
Manufacturer Wing Shing Computer Components
File Size 71.17 KB
Description SILICON DIFFUSED POWER TRANSISTOR(GENERAL DESCRIPTION)
Datasheet download datasheet BUT12AF_WingShingComputerComponents.pdf
Additional preview pages of the BUT12AF datasheet.

BUT12AF Product details

Description

SILICON DIFFUSED POWER TRANSISTOR Highvoltage,high-speed switching npn transistors in a metal envelope ,primarily for use in switching power circuits.QUICK REFERENCE DATA SYMBOL TO-220F CONDITIONS VBE = 0V MIN MAX 1000 450 8 20 100 1.5 UNIT V V A A W V A V s VCESM VCEO IC ICM Ptot VCEsat Icsat VF tf PARAMETER Collector-emitter voltage peak value Collector-emitter voltage (open base) Collector current (DC) Collector current peak value Total power dissipation Collector-emitter saturation vo
