BUT12F - Silicon diffused power transistors

Name: BUT12F
SKU: BUT12F-117988

NXP

The BUT12F by NXP is a Silicon diffused power transistors. Below is the official datasheet preview.

📥 Download Datasheet

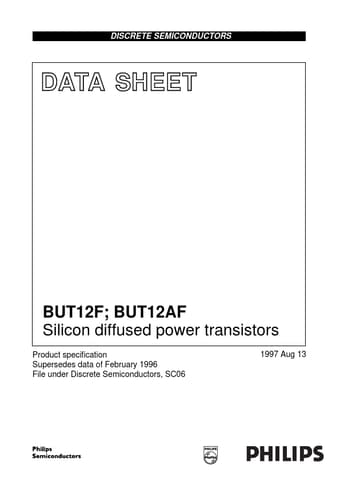

BUT12F Silicon diffused power transistors by NXP - Datasheet Preview — Official preview page of the **BUT12F** Silicon diffused power transistors datasheet (NXP).

Datasheet Details

Part number	BUT12F
Manufacturer	NXP
File Size	78.04 KB
Description	Silicon diffused power transistors
Datasheet	BUT12F_PhilipsSemiconductors.pdf
Additional preview pages of the BUT12F datasheet.

BUT12F Product details

Description

High-voltage, high-speed, glass-passivated NPN power transistor in a SOT186 plastic package. Converters Inverters Switching regulators Motor control systems.

Features

are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such.
