BUT12XI - Silicon Diffused Power Transistor

Description

Improved high-voltage, high-speed glass-passivated npn power transistor in a plastic full-pack envelope specially suited for overhead/high frequency lighting ballast applications and converters, inverters, switching regulators, motor control systems, etc.

📥 Download Datasheet

📁 Similar Datasheet

  • BUT12 - SILICON DIFFUSED POWER TRANSISTOR(GENERAL DESCRIPTION) (Wing Shing Computer Components)
  • BUT12A - SILICON DIFFUSED POWER TRANSISTOR(GENERAL DESCRIPTION) (Wing Shing Computer Components)
  • BUT12AF - SILICON DIFFUSED POWER TRANSISTOR(GENERAL DESCRIPTION) (Wing Shing Computer Components)
  • BUT12AF - SILICON POWER TRANSISTOR (SavantIC)
  • BUT12AX - NPN Transistor (INCHANGE)
  • BUT12AX - SILICON POWER TRANSISTOR (SavantIC)
  • BUT12F - SILICON POWER TRANSISTOR (SavantIC)
  • BUT100 - HIGH POWER NPN SILICON TRANSISTOR (STMicroelectronics)
  • BUT100 - NPN Transistor (INCHANGE)
  • BUT11 - NPN SILICON POWER TRANSISTOR (Power Innovations Limited)
Other Datasheets by NXP
  • BUT12 - Silicon diffused power transistors
  • BUT12A - Silicon diffused power transistors
  • BUT12AF - Silicon diffused power transistors
  • BUT12AI - Silicon Diffused Power Transistor
  • BUT12F - Silicon diffused power transistors
  • BUT11 - Silicon diffused power transistors
  • BUT11A - Silicon diffused power transistors
  • BUT11AF - Silicon Diffused Power Transistor

Full PDF Text Transcription

Click to expand full text

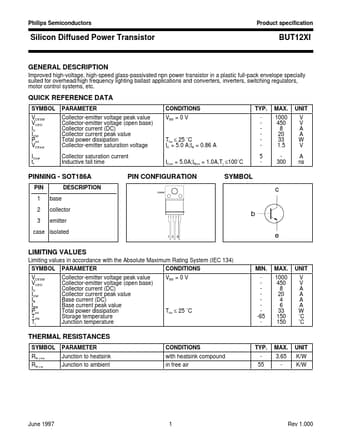

Philips Semiconductors Product specification Silicon Diffused Power Transistor BUT12XI GENERAL DESCRIPTION Improved high-voltage, high-speed glass-passivated npn power transistor in a plastic full-pack envelope specially suited for overhead/high frequency lighting ballast applications and converters, inverters, switching regulators, motor control systems, etc. QUICK REFERENCE DATA SYMBOL VCESM VCEO IC ICM Ptot VCEsat ICsat tf PARAMETER Collector-emitter voltage peak value Collector-emitter voltage (open base) Collector current (DC) Collector current peak value Total power dissipation Collector-emitter saturation voltage Collector saturation current Inductive fall time CONDITIONS VBE = 0 V TYP. 5 MAX. 1000 450 8 20 33 1.5 300 UNIT V V A A W V A ns Ths ≤ 25 ˚C IC = 5.0 A;IB = 0.
