BUT11APX - Silicon Diffused Power Transistor

Name: BUT11APX
SKU: BUT11APX-117972

NXP

📥 Download Datasheet

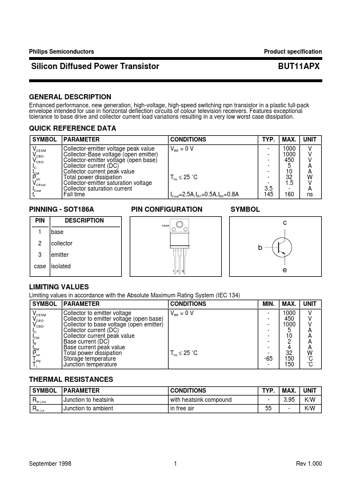

BUT11APX Datasheet Preview — Preview of BUT11APX PDF

Datasheet Details

Part number	BUT11APX
Manufacturer	NXP
File Size	77.24 KB
Description	Silicon Diffused Power Transistor
Datasheet	BUT11APX_PhilipsSemiconductors.pdf

BUT11APX Product details

Description

Enhanced performance, new generation, high-voltage, high-speed switching npn transistor in a plastic full-pack envelope intended for use in horizontal deflection circuits of colour television receivers.

Features

exceptional tolerance to base drive and collector current load variations resulting in a very low worst case dissipation. QUICK.
