ESDA6V8V5 - Small Power TVS

Name: ESDA6V8V5
SKU: ESDA6V8V5-1112793

WillSEMI

📥 Download Datasheet

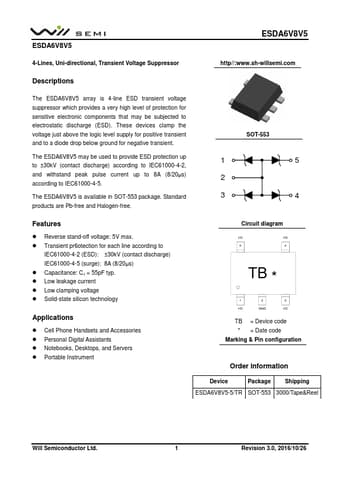

ESDA6V8V5 Datasheet Preview — Preview of ESDA6V8V5 PDF

Datasheet Details

Part number	ESDA6V8V5
Manufacturer	WillSEMI
File Size	395.75 KB
Description	Small Power TVS
Datasheet	ESDA6V8V5-WillSEMI.pdf

ESDA6V8V5 Product details

Description

The ESDA6V8V5 array is 4-line ESD transient voltage suppressor which provides a very high level of protection for sensitive electronic components that may be subjected to electrostatic discharge (ESD).

Features

Reverse stand-off voltage: 5V max.
Transient pr6otection for each line according to IEC61000-4-2 (ESD): ±30kV (contact discharge) IEC61000-4-5 (surge): 8A (8/20μs).
Capacitance: CJ = 55pF typ.
Low le.
