ESDA6V1-5W6 - TRANSIL ARRAY FOR ESD PROTECTION

STMicroelectronics

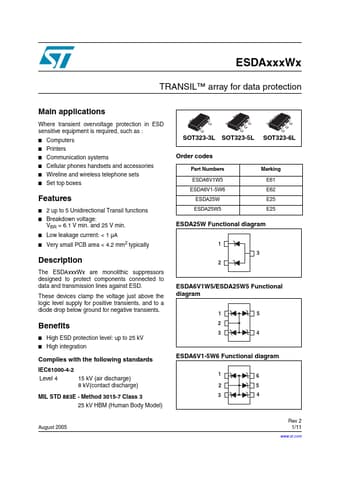

The ESDA6V1-5W6 by STMicroelectronics is a TRANSIL ARRAY FOR ESD PROTECTION. Below is the official datasheet preview.

📥 Download Datasheet

ESDA6V1-5W6 TRANSIL ARRAY FOR ESD PROTECTION by STMicroelectronics - Datasheet Preview — Official preview page of the **ESDA6V1-5W6** TRANSIL ARRAY FOR ESD PROTECTION datasheet (STMicroelectronics).

Datasheet Details

Part number	ESDA6V1-5W6
Manufacturer	STMicroelectronics
File Size	84.70 KB
Description	TRANSIL ARRAY FOR ESD PROTECTION
Datasheet	ESDA6V1-5W6_STMicroelectronics.pdf
Additional preview pages of the ESDA6V1-5W6 datasheet.

ESDA6V1-5W6 Product details

Description

The ESDAxxxWx are monolithic suppressors designed to protect components connected to data and transmission lines against ESD. High ESD protection level: up to 25 kV High integration Complies with the following standards IEC61000-4-2 Level 4 15 kV (air discharge) 8 kV(contact discharge) MIL STD 883E - Method 3015-7 Class 3

Features

2 up to 5 Unidirectional Transil functions.
Breakdown voltage: VBR = 6.1 V min. and 25 V min.
Low leakage current: < 1 µA.
Very small PCB area < 4.2 mm2 typically.
