ESDA6V1-5M6 - 4- and 5-line Transil arrays

Name: ESDA6V1-5M6
SKU: ESDA6V1-5M6-662537

STMicroelectronics

📥 Download Datasheet

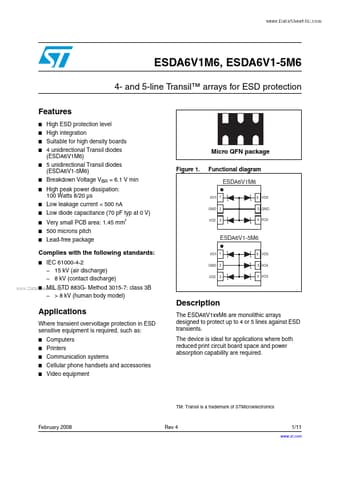

ESDA6V1-5M6 Datasheet Preview — Preview of ESDA6V1-5M6 PDF

Datasheet Details

Part number	ESDA6V1-5M6
Manufacturer	STMicroelectronics
File Size	271.80 KB
Description	4- and 5-line Transil arrays
Datasheet	ESDA6V1-5M6_STMicroelectronics.pdf

ESDA6V1-5M6 Product details

Description

Applications Where transient overvoltage protection in ESD sensitive equipment is required, such as: The ESDA6V1xxM6 are monolithic arrays designed to protect up to 4 or 5 lines against ESD transients.

Features

High ESD protection level High integration Suitable for high density boards 4 unidirectional Transil diodes (ESDA6V1M6) 5 unidirectional Transil diodes (ESDA6V1-5M6) Breakdown Voltage VBR = 6.1 V min High peak power dissipation: 100 Watts 8/20 µs Low leakage current < 500 nA Low diode capacitance (70 pF typ at 0 V) Very small PCB area: 1.45 mm² 500 microns pitch Lead-free package GND 2 I/O2 3 5 GND 4 I/O3 I/O1 1 Micro QFN.
