ESDA6V1-4BC6 - QUAD BIDIRECTIONAL TRANSIL SUPPRESSOR

STMicroelectronics

📥 Download Datasheet

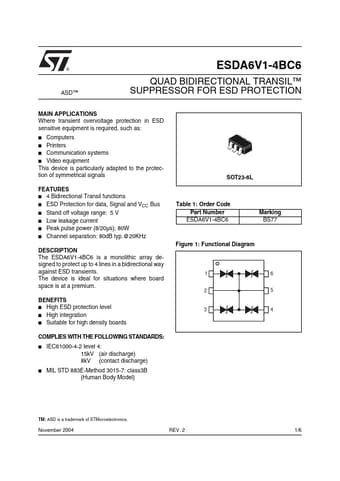

ESDA6V1-4BC6 Datasheet Preview — Preview of ESDA6V1-4BC6 PDF

Datasheet Details

Part number	ESDA6V1-4BC6
Manufacturer	STMicroelectronics
File Size	57.92 KB
Description	QUAD BIDIRECTIONAL TRANSIL SUPPRESSOR
Datasheet	ESDA6V1-4BC6_STMicroelectronics.pdf

ESDA6V1-4BC6 Product details

Description

The ESDA6V1-4BC6 is a monolithic array designed to protect up to 4 lines in a bidirectional way against ESD transients. High ESD protection level High integration Suitable for high density boards COMPLIES WITH THE FOLLOWING STANDARDS: IEC61000-4-2 level 4: 15kV (air discharge) 8kV (contact discharge) MIL STD 883E-Method 3015-7: class3B (Human Body Model) SOT23-6L Table 1: Order Code Par

Features

4 Bidirectional Transil functions.
ESD Protection for data, Signal and VCC Bus.
Stand off voltage range: 5 V.
Low leakage current.
Peak pulse power (8/20µs); 80W.
Channel separation: 80dB typ. @20KHz.
