WV3HG2128M72EEU-D6 - 2GB - 2x128Mx72 DDR2 SDRAM UNBUFFERED DIMM

White Electronic Designs

The WV3HG2128M72EEU-D6 by White Electronic Designs is a 2GB - 2x128Mx72 DDR2 SDRAM UNBUFFERED DIMM. Below is the official datasheet preview.

📥 Download Datasheet

WV3HG2128M72EEU-D6 2GB - 2x128Mx72 DDR2 SDRAM UNBUFFERED DIMM by White Electronic Designs - Datasheet Preview — Official preview page of the **WV3HG2128M72EEU-D6** 2GB - 2x128Mx72 DDR2 SDRAM UNBUFFERED DIMM datasheet (White Electronic Designs).

Datasheet Details

Part number	WV3HG2128M72EEU-D6
Manufacturer	White Electronic Designs
File Size	232.45 KB
Description	2GB - 2x128Mx72 DDR2 SDRAM UNBUFFERED DIMM
Datasheet	WV3HG2128M72EEU-D6_WhiteElectronicDesigns.pdf

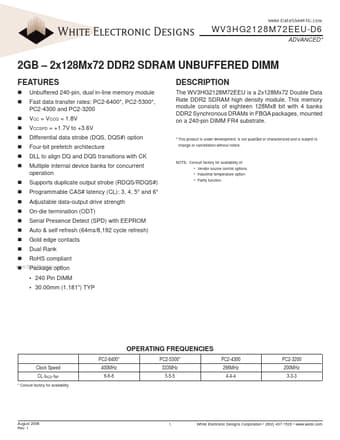

Additional preview pages of the WV3HG2128M72EEU-D6 datasheet.

WV3HG2128M72EEU-D6 Product details

Description

The WV3HG2128M72EEU is a 2x128Mx72 Double Data Rate DDR2 SDRAM high density module. Package option OPERATING FREQUENCIES PC2-6400 Clock Speed CL-tRCD-tRP Consult factory for availability PC2-5300 333MHz 5-5-5 PC2-4300 266MHz 4-4-4 PC2-3200 200MHz 3-3-3 400MHz 6-6-6 August 2006 Rev.1 1 White Electr

Features

Unbuffered 240-pin, dual in-line memory module Fast data transfer rates: PC2-6400.
, PC2-5300.
, PC2-4300 and PC2-3200 VCC = VCCQ = 1.8V VCCSPD = +1.7V to +3.6V Differential data strobe (DQS, DQS#) option Four-bit prefetch architecture DLL to align DQ and DQS transitions with CK Multiple internal device banks for concurren.
