Datasheet Details
| Part number | WV3HG2128M64EEU-D4 |
|---|---|
| Manufacturer | White Electronic Designs |
| File Size | 237.33 KB |
| Description | 2GB - 2x128Mx64 DDR2 SDRAM UNBUFFERED |
| Datasheet |

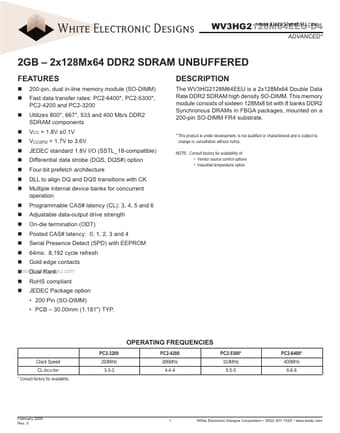

 WV3HG2128M64EEU-D4 Datasheet
|
|
|
Description
The WV3HG2128M64EEU is a 2x128Mx64 Double Data Rate DDR2 SDRAM high density SO-DIMM.
This memory module consists of sixteen 128Mx8 bit with 8 banks DDR2 Synchronous DRAMs in FBGA packages, mounted on a 200-pin SO-DIMM FR4 substrate.
This product is under development, is not qualified or charactFeatures
- 200-pin, dual in-line memory module (SO-DIMM) Fast data transfer rates: PC2-6400.
- , PC2-5300.
- , PC2-4200 and PC2-3200 Utilizes 800.
- , 667.
- , 533 and 400 Mb/s DDR2 SDRAM components VCC = 1.8V ±0.1V VCCSPD = 1.7V to 3.6V JEDEC standard 1.8V I/O (SSTL_18-compatible) Differential data strobe (DQS, DQS#) option Four-bit prefetch architecture DLL to align DQ and DQS transitions with CK Multiple internal device banks for concurrent operation Programmable CAS# latency (CL): 3, 4, 5 and 6 Adj.
