WV3HG2128M72AER-D6 - 2GB - 2x128Mx72 DDR2 SDRAM REGISTERED

White Electronic Designs

The WV3HG2128M72AER-D6 by White Electronic Designs is a 2GB - 2x128Mx72 DDR2 SDRAM REGISTERED. Below is the official datasheet preview.

📥 Download Datasheet

WV3HG2128M72AER-D6 2GB - 2x128Mx72 DDR2 SDRAM REGISTERED by White Electronic Designs - Datasheet Preview — Official preview page of the **WV3HG2128M72AER-D6** 2GB - 2x128Mx72 DDR2 SDRAM REGISTERED datasheet (White Electronic Designs).

Datasheet Details

Part number	WV3HG2128M72AER-D6
Manufacturer	White Electronic Designs
File Size	190.99 KB
Description	2GB - 2x128Mx72 DDR2 SDRAM REGISTERED
Datasheet	WV3HG2128M72AER-D6_WhiteElectronicDesigns.pdf

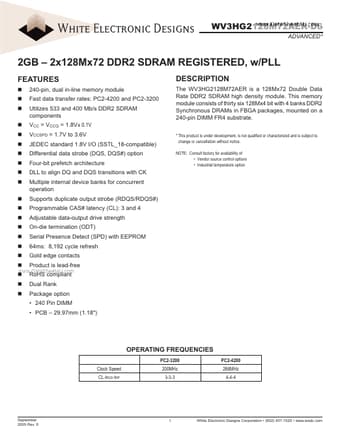

Additional preview pages of the WV3HG2128M72AER-D6 datasheet.

WV3HG2128M72AER-D6 Product details

Description

The WV3HG2128M72AER is a 128Mx72 Double Data Rate DDR2 SDRAM high density module. 240 Pin DIMM PCB 29.97mm (1.18") OPERATING FREQUENCIES PC2-3200 Clock Speed CL-tRCD-tRP 200MHz 3-3-3 PC2-4200 266MHz 4-4-4 September 2005 Rev.0 1 White Electronic Designs Corporation

Features

240-pin, dual in-line memory module Fast data transfer rates: PC2-4200 and PC2-3200 Utilizes 533 and 400 Mb/s DDR2 SDRAM components VCC = VCCQ = 1.8V± 0.1V VCCSPD = 1.7V to 3.6V JEDEC standard 1.8V I/O (SSTL_18-compatible) Differential data strobe (DQS, DQS#) option Four-bit prefetch architecture DLL to align DQ and DQS transitions with CK Multiple internal device banks for concurrent operation Supports duplicate output strobe (RDQS/RDQS#) Programmable CAS# latency (CL): 3 and 4 Adjustable data-.
