1SS370 - Surface Mount Switching Diode

1SS370 Description

Surface Mount Switching Diode P b Lead(Pb)-Free .

1SS370 Applications

* Low Forward Voltage : VF = 0.9V
* Fast Reverse Recovery time : trr = 60nS
* Small Total Capacitance : CT = 1.5pF 1SS370 SWITCHING DIODE 100m AMPERES 200 VOLTS 3 1. Anode 2. N. C. 3. Cathode 1 2 SOT-323 SOT-323 Outline Demensions A TOP VIE W BC D EG H K L J M Unit:mm SOT-32

📥 Download Datasheet

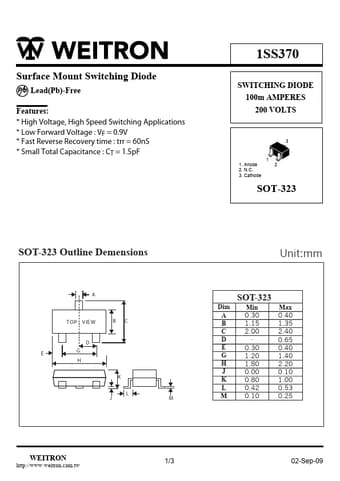

Preview of 1SS370 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1SS370
Manufacturer
WEITRON
File Size
883.20 KB
Datasheet
1SS370-WEITRON.pdf
Description
Surface Mount Switching Diode
