VSMB14940

The VSMB14940 is High Speed Infrared Emitting Diodes designed by Vishay.

Product Overview

Vishay

Datasheet Details

Part number	VSMB14940
Manufacturer	Vishay
File Size	133.65 KB
Description	High Speed Infrared Emitting Diodes
Datasheet	VSMB14940-Vishay.pdf

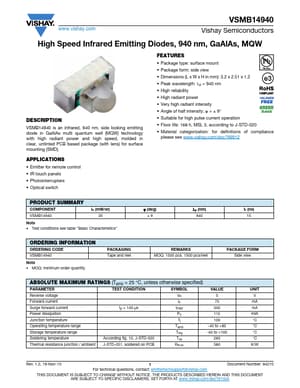

Additional preview pages of the VSMB14940 datasheet.

Product details

Description

VSMB14940 is an infrared, 940 nm, side looking emitting diode in GaAlAs multi quantum well (MQW) technology with high radiant power and high speed, molded in clear, untinted PCB based package (with lens) for surface mounting (SMD). Emitter for remote control IR touch panels Photointerrupters Optical switch

Features

Package type: surface mount.
Package form: side view.
Dimensions (L x W x H in mm): 3.2 x 2.51 x 1.2.
Peak wavelength:.
p = 940 nm.
High reliability.
High radiant power.
Very high radiant intensity.
Angle of half intensity:  = ± 9°.
Suitable for high pulse current operation.
Floor life: 168 h, MSL 3, according to J-STD-020.
Material categorization: for definitions of compliance please see www.
