VEMD8130 - Silicon PIN Photodiode

Product Overview

Vishay

📥 Download Datasheet

VEMD8130 Silicon PIN Photodiode by Vishay - Datasheet Preview — Datasheet preview – VEMD8130

Datasheet Details

Part number	VEMD8130
Manufacturer	Vishay
File Size	374.84 KB
Description	Silicon PIN Photodiode
Datasheet	VEMD8130 Datasheet

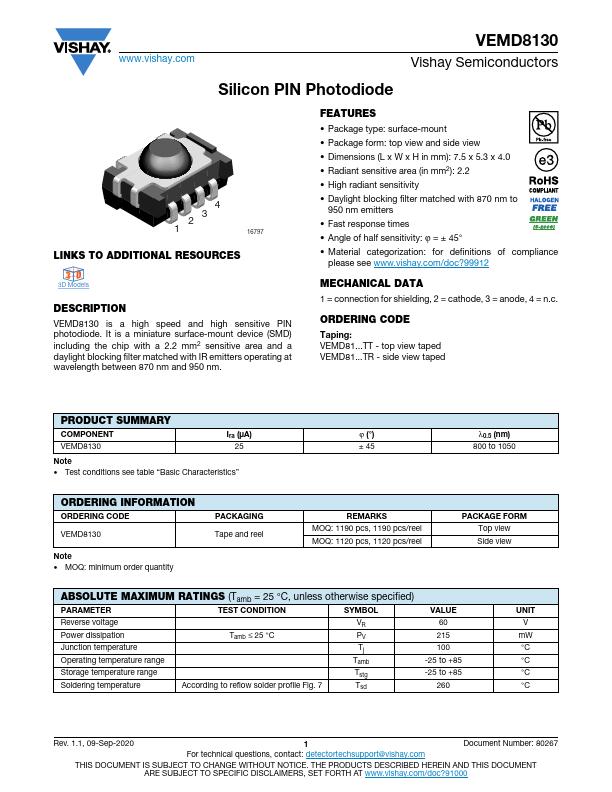

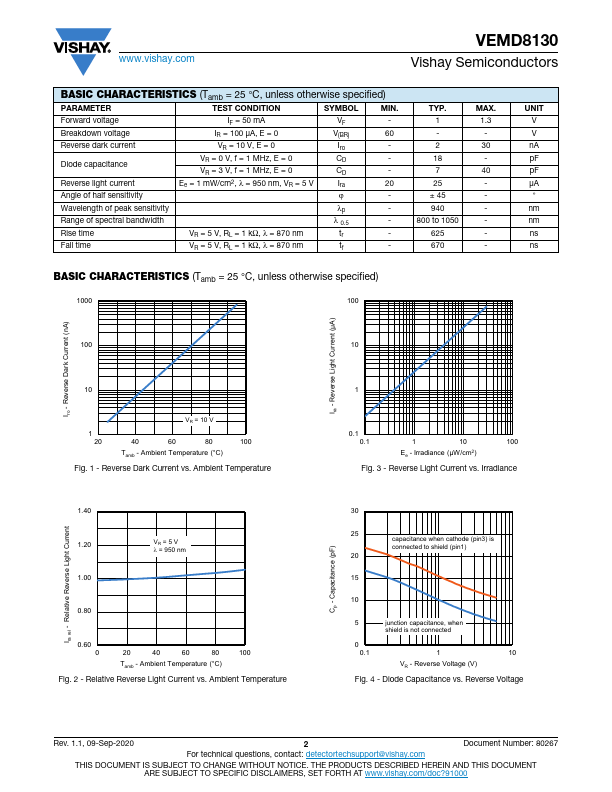

Additional preview pages of the VEMD8130 datasheet.

Product details

Description

VEMD8130 is a high speed and high sensitive PIN photodiode.

Features

Package type: surface-mount.
Package form: top view and side view.
Dimensions (L x W x H in mm): 7.5 x 5.3 x 4.0.
Radiant sensitive area (in mm2): 2.2.
High radiant sensitivity.
Daylight blocking filter matched with 870 nm to 950 nm emitters.
Fast response times.
Angle of half sensitivity: ϕ = ± 45°.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
