VEMD8080 - Silicon PIN Photodiode

Product Overview

Vishay

📥 Download Datasheet

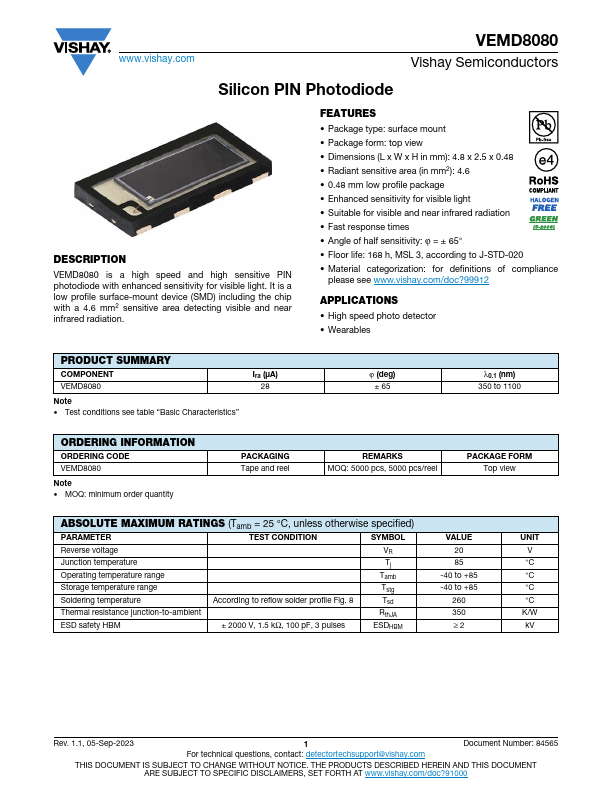

VEMD8080 Silicon PIN Photodiode by Vishay - Datasheet Preview — Datasheet preview – VEMD8080

Datasheet Details

Part number	VEMD8080
Manufacturer	Vishay
File Size	156.42 KB
Description	Silicon PIN Photodiode
Datasheet	VEMD8080 Datasheet

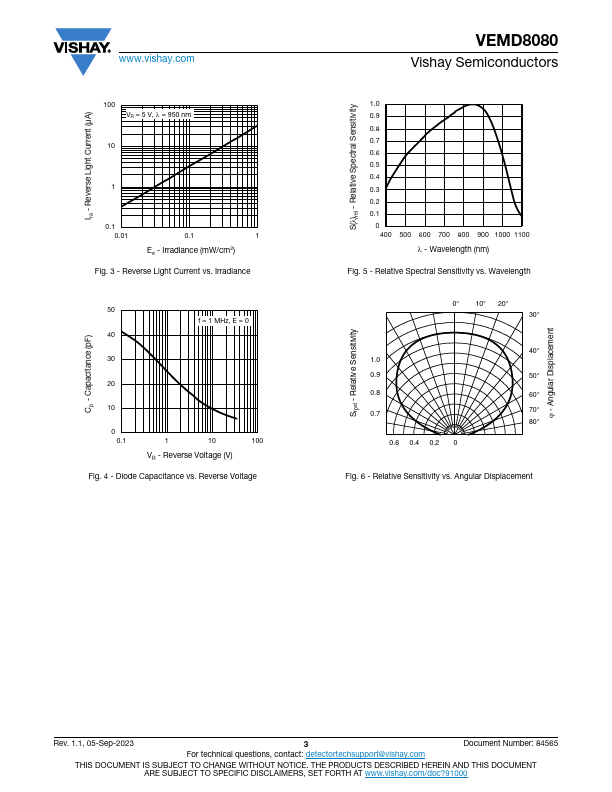

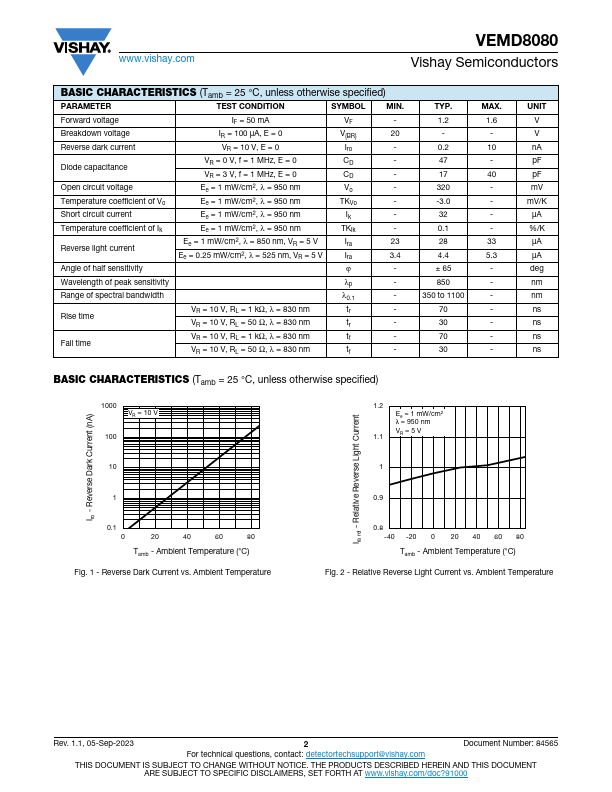

Additional preview pages of the VEMD8080 datasheet.

Product details

Description

VEMD8080 is a high speed and high sensitive PIN photodiode with enhanced sensitivity for visible light.

Features

Package type: surface mount.
Package form: top view.
Dimensions (L x W x H in mm): 4.8 x 2.5 x 0.48.
Radiant sensitive area (in mm2): 4.6.
0.48 mm low profile package.
Enhanced sensitivity for visible light.
Suitable for visible and near infrared radiation.
Fast response times.
Angle of half sensitivity: ϕ = ± 65°.
Floor life: 168 h, MSL 3, according to J-STD-020.
Material categorization: for defi.
