VEMD10940FX01 - Silicon PIN Photodiode

Name: VEMD10940FX01
SKU: VEMD10940FX01-1103860

Vishay

📥 Download Datasheet

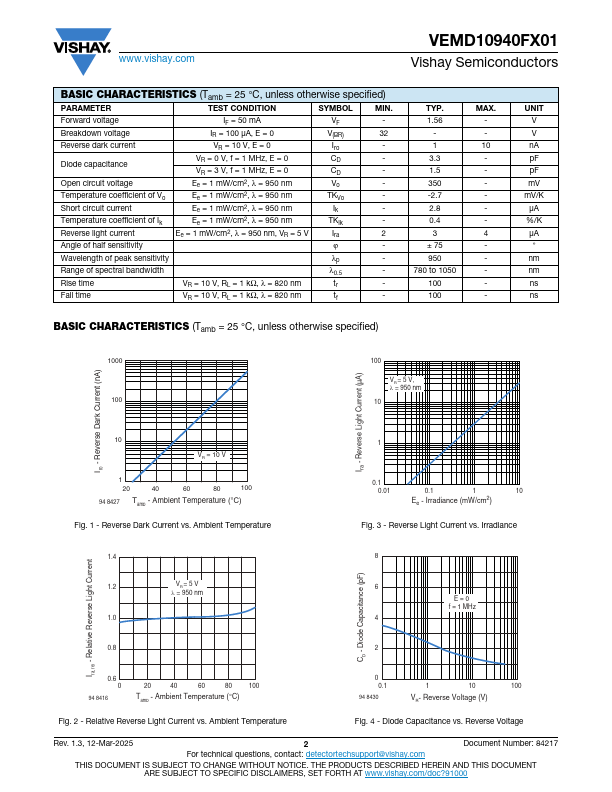

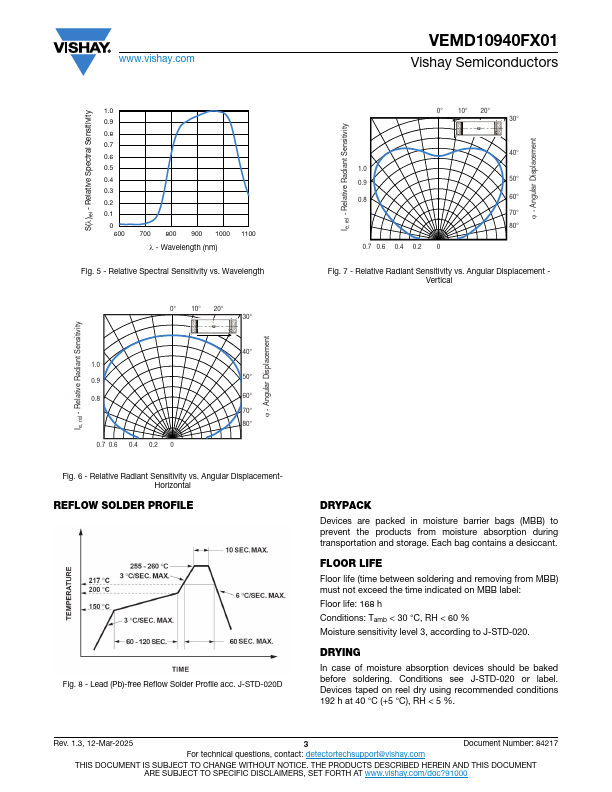

VEMD10940FX01 Datasheet Preview — Preview of VEMD10940FX01 PDF

Datasheet Details

Part number	VEMD10940FX01
Manufacturer	Vishay
File Size	260.05 KB
Description	Silicon PIN Photodiode
Datasheet	VEMD10940FX01-Vishay.pdf

VEMD10940FX01 Product details

Description

VEMD10940FX01 is a high speed and high sensitive PIN photodiode in a miniature side looking, surface mount package (SMD) with daylight blocking filter.

Features

Package type: surface-mount.
Package form: Side view.
Dimensions (L x W x H in mm): 3 x 2 x 1.
AEC-Q101 qualified.
High radiant sensitivity.
Daylight blocking filter matched with 830 nm to 950 nm IR emitters.
Fast response times.
Angle of half sensitivity: ϕ = ± 75°.
Package matched with IR emitter VSMB10940X01.
Floor life: 168 h, MSL 3, according to J-STD-020.
Lead (Pb)-free reflow soldering.
