VEMD8081 - Silicon PIN Photodiode

Product Overview

Vishay

📥 Download Datasheet

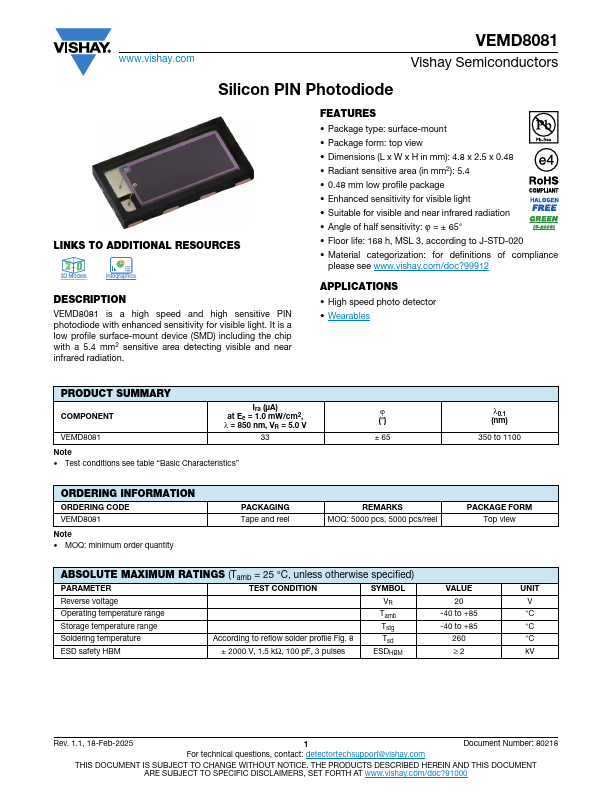

VEMD8081 Silicon PIN Photodiode by Vishay - Datasheet Preview — Datasheet preview – VEMD8081

Datasheet Details

Part number	VEMD8081
Manufacturer	Vishay
File Size	160.10 KB
Description	Silicon PIN Photodiode
Datasheet	VEMD8081 Datasheet

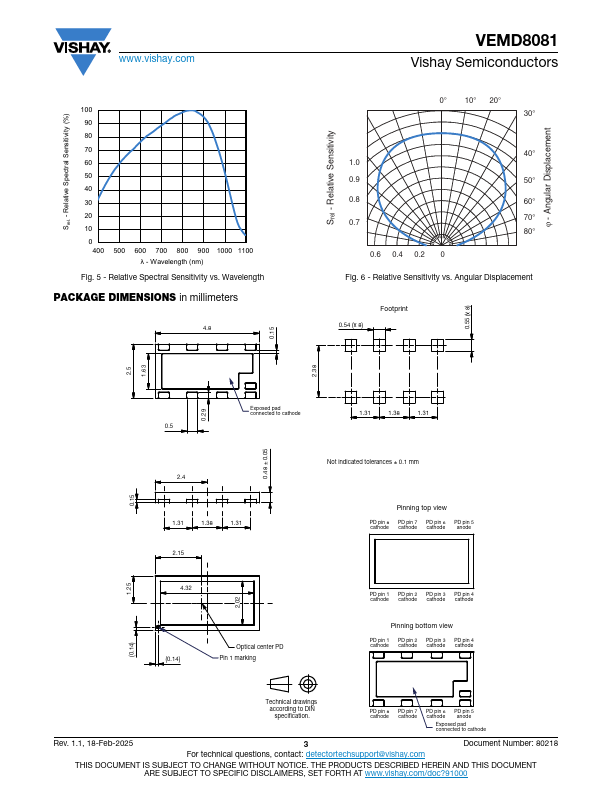

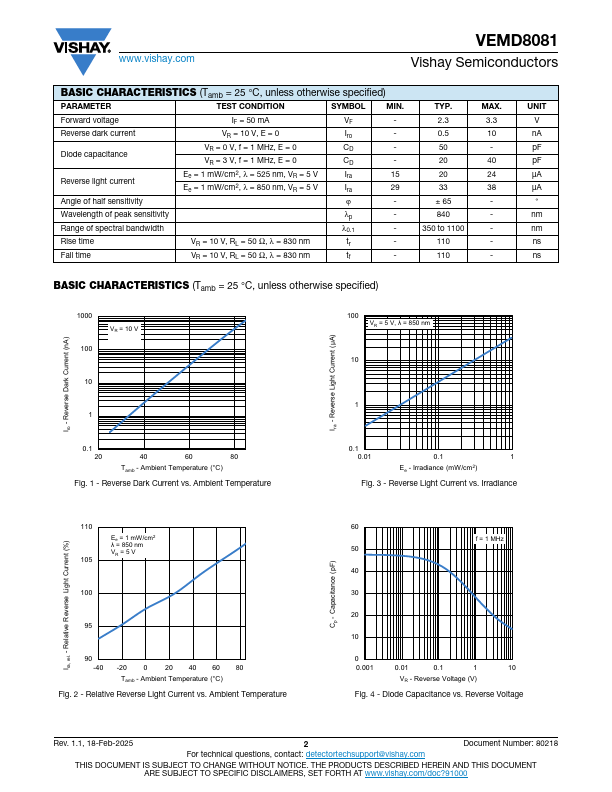

Additional preview pages of the VEMD8081 datasheet.

Product details

Description

VEMD8081 is a high speed and high sensitive PIN photodiode with enhanced sensitivity for visible light.

Features

Package type: surface-mount.
Package form: top view.
Dimensions (L x W x H in mm): 4.8 x 2.5 x 0.48.
Radiant sensitive area (in mm2): 5.4.
0.48 mm low profile package.
Enhanced sensitivity for visible light.
Suitable for visible and near infrared radiation.
Angle of half sensitivity: ϕ = ± 65°.
Floor life: 168 h, MSL 3, according to J-STD-020.
Material categorization: for definitions of compliance please s.
