ICM-4743, ICM-2824 High-Current Choke

ICM-4743 Description

www.vishay.com ICM-2824, ICM-3528, ICM-4743 Vishay Dale High Current Common Mode Choke .

ICM-4743 Features

* Surface mountable (multiple case sizes), high current common mode choke for DC power line
* Base terminals are treated, allows for easy mounting on PCB
* Paired wire coil for high stability
* Optimized for transmission of high quality signals
* Operating tem

ICM-4743 Applications

* LAN’s, telephones, personal computers
* CD-ROM drives, electronic games

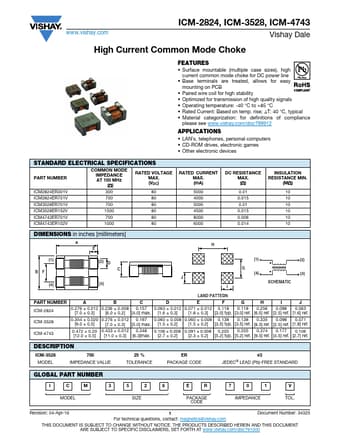

* Other electronic devices STANDARD ELECTRICAL SPECIFICATIONS PART NUMBER COMMON MODE IMPEDANCE AT 100 MHz () RATED VOLTAGE MAX. (VDC) ICM2824ER301V 300 80 ICM2824ER701V 700 80 ICM3528ER701V
