ICM-0805 Surface Mount Common Mode Choke

ICM-0805 Description

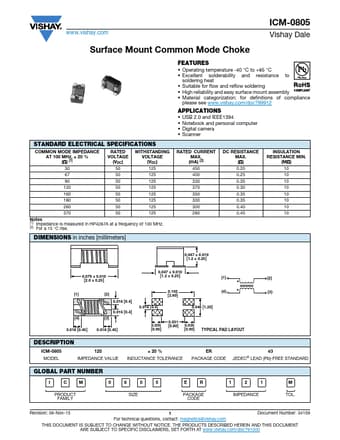

www.vishay.com ICM-0805 Vishay Dale Surface Mount Common Mode Choke STANDARD ELECTRICAL SPECIFICATIONS COMMON MODE IMPEDANCE AT 100 MHz, ± 20 % (.

ICM-0805 Features

* Operating temperature -40 °C to +85 °C
* Excellent solderability and resistance to soldering heat
* Suitable for flow and reflow soldering
* High reliability and easy surface mount assembly
* Material categorization: for definitions of compliance please see

ICM-0805 Applications

* USB 2.0 and IEEE1394
* Notebook and personal computer
* Digital camera
* Scanner RATED CURRENT MAX. (mA) (2) 450 400 330 370 350 330 300 280 DC RESISTANCE MAX. () 0.20 0.25 0.35 0.30 0.35 0.35 0.40 0.45 INSULATION RESISTANCE MIN. (M)
