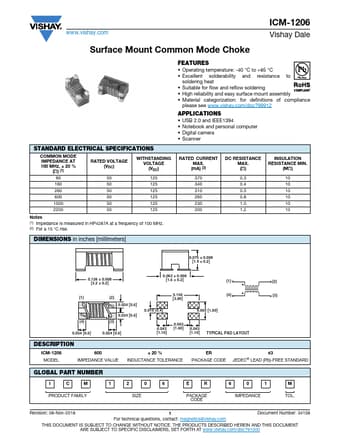

ICM-1206 Surface Mount Common Mode Choke

ICM-1206 Description

www.vishay.com ICM-1206 Vishay Dale Surface Mount Common Mode Choke .
ICM-1206 MODEL 600 IMPEDANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I C M 1.

ICM-1206 Features

* Operating temperature: -40 °C to +85 °C
* Excellent solderability and resistance to soldering heat
* Suitable for flow and reflow soldering
* High reliability and easy surface mount assembly
* Material categorization: for definitions of compliance please see

ICM-1206 Applications

* USB 2.0 and IEEE1394
* Notebook and personal computer
* Digital camera
* Scanner STANDARD ELECTRICAL SPECIFICATIONS COMMON MODE IMPEDANCE AT 100 MHz, ± 20 % ()(1) RATED VOLTAGE (VDC) WITHSTANDING VOLTAGE (VDC) 90 160 260 600 1000 2200 50 125 50 125 50 1
