ICM2824ER701V - High-Current Choke

Download the ICM2824ER701V datasheet PDF. This datasheet also covers the ICM-2824 variant, as both devices belong to the same high-current choke family and are provided as variant models within a single manufacturer datasheet.

Features

  • Surface mountable (multiple case sizes), high current common mode choke for DC power line.
  • Base terminals are treated, allows for easy mounting on PCB.
  • Paired wire coil for high stability.
  • Optimized for transmission of high quality signals.
  • Operating temperature: -40 °C to +85 °C.
  • Rated Current: Based on temp. rise; T: 40 °C, typical.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ICM-2824-Vishay.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
ICM200E 2-Megapixel Digital Color CMOS Image Sensor IC Media
ICM202B CIF/QCIF CMOS image sensor IC Media
ICM205B VGA/QVGA CMOS image sensor IC Media
ICM220 LOCKOUT PROTECTION RELAY ICM
ICM-0805 Surface Mount Common Mode Choke Vishay Siliconix

Other Datasheets by Vishay

Part Number Description
ICM2824ER301V High-Current Choke
ICM2020 Surface-Mount Common Mode Choke
ICM-2824 High-Current Choke
ICM-3528 High-Current Choke
ICM-4743 High-Current Choke

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

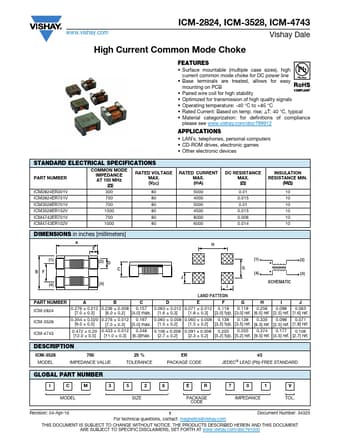

www.vishay.com ICM-2824, ICM-3528, ICM-4743 Vishay Dale High Current Common Mode Choke FEATURES • Surface mountable (multiple case sizes), high current common mode choke for DC power line • Base terminals are treated, allows for easy mounting on PCB • Paired wire coil for high stability • Optimized for transmission of high quality signals • Operating temperature: -40 °C to +85 °C • Rated Current: Based on temp. rise; T: 40 °C, typical • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS • LAN’s, telephones, personal computers • CD-ROM drives, electronic games • Other electronic devices STANDARD ELECTRICAL SPECIFICATIONS PART NUMBER COMMON MODE IMPEDANCE AT 100 MHz () RATED VOLTAGE MAX.
