20CTH03FP, 20CTH03 Hyperfast Rectifier

20CTH03FP Description

20CTH03/20CTH03FP Vishay High Power Products 20CTH03 Base common cathode 2 Hyperfast Rectifier, 2 x 10 A FRED PtTM 20CTH03FP .
APPLICATIONS 300 V series are the state of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop and hyper.

20CTH03FP Features

* Hyperfast recovery time
* Low forward voltage drop
* Low leakage current
* 175 °C operating junction temperature
* Fully isolated package (VINS = 2500 VRMS)
* TO-220 designed and qualified for AEC Q101 level
* TO-220FP designed and qualified

20CTH03FP Applications

* 300 V series are the state of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop and hyperfast recovery time. The planar structure and the platinum doped life time control, guarantee the best overall performance, ruggedness and reliability characteristi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 20CTH03FP, 20CTH03. Please refer to the document for exact specifications by model.

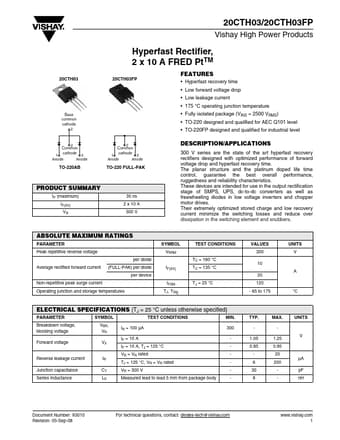

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
20CTH03FP, 20CTH03
Manufacturer
Vishay ↗
File Size
113.00 KB
Datasheet
20CTH03-Vishay.pdf
Description
Hyperfast Rectifier
Note
This datasheet PDF includes multiple part numbers: 20CTH03FP, 20CTH03.
Please refer to the document for exact specifications by model.
