20CTH03SPbF - Hyperfast Rectifier

Download the 20CTH03SPbF datasheet PDF (20CTH03-1PbF included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for hyperfast rectifier.

Description

International Rectifier's 300V series are the state of the art Hyperfast recovery rectifiers designed with optimized performance of forward voltage drop and Hyperfast recovery time.

Features

  • Hyperfast Recovery Time Low Forward Voltage Drop Low Leakage Current 175°C Operating Junction Temperature Lead-Free ("PbF" suffix) trr = 35ns max. IF(AV) = 20Amp VR = 300V.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (20CTH03-1PbF_InternationalRectifier.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • 20CTH03 - Hyperfast Rectifier (Vishay)
  • 20CTH03FP - Hyperfast Rectifier (Vishay)
  • 20CTH03FP - Ultrafast Rectifier (INCHANGE)
  • 20CTQ - SCHOTTKYRECTIFIER (InternationalRectifier)
  • 20CTQ035-1 - SCHOTTKYRECTIFIER (InternationalRectifier)
  • 20CTQ035S - SCHOTTKYRECTIFIER (InternationalRectifier)
  • 20CTQ040-1 - SCHOTTKYRECTIFIER (InternationalRectifier)
  • 20CTQ040S - SCHOTTKYRECTIFIER (InternationalRectifier)
  • 20CTQ045-1 - SCHOTTKYRECTIFIER (InternationalRectifier)
  • 20CTQ045S - SCHOTTKYRECTIFIER (InternationalRectifier)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text

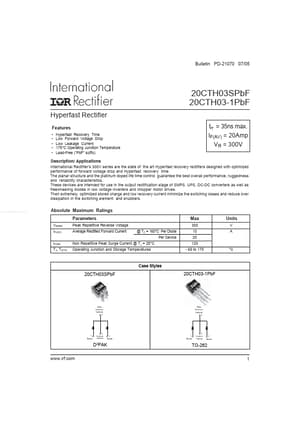

Bulletin PD-21070 07/05 20CTH03SPbF 20CTH03-1PbF Hyperfast Rectifier Features • • • • • Hyperfast Recovery Time Low Forward Voltage Drop Low Leakage Current 175°C Operating Junction Temperature Lead-Free ("PbF" suffix) trr = 35ns max. IF(AV) = 20Amp VR = 300V Description/ Applications International Rectifier's 300V series are the state of the art Hyperfast recovery rectifiers designed with optimized performance of forward voltage drop and Hyperfast recovery time. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. These devices are intended for use in the output rectification stage of SMPS, UPS, DC-DC converters as well as freewheeling diodes in low voltage inverters and chopper motor drives.
