20CJQ045 - Schottky Rectifier

Description

The 20CJQ045 surface mount Schottky rectifier series has been designed for applications requiring very low forward drop and very small foot prints.

Features

  • Small foot print, surface mountable.
  • Low profile.
  • Very low forward voltage drop.
  • High frequency operation.
  • Guard ring for enhanced ruggedness and long term reliability.
  • Common cathode.
  • Designed and qualified for industrial level.

📥 Download Datasheet

Datasheet Details

Part number 20CJQ045
Manufacturer Vishay
File Size 90.66 KB
Description Schottky Rectifier
Datasheet download datasheet 20CJQ045 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
20CJQ045 SCHOTTKYRECTIFIER/2Amp InternationalRectifier
20CJQ030 SCHOTTKYRECTIFIER/2Amp InternationalRectifier
20CJQ060 SCHOTTKYRECTIFIER/2Amp InternationalRectifier
20CJQ060 SCHOTTKY RECTIFIER SMC Diode
20CJQ100 SCHOTTKYRECTIFIER/2Amp InternationalRectifier

Other Datasheets by Vishay

Part Number Description
20CJQ045PBF Schottky Rectifier
20CJQ030 Schottky Rectifier
20CJQ030PBF Schottky Rectifier
20CJQ060 Schottky Rectifier
20CTH03 Hyperfast Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

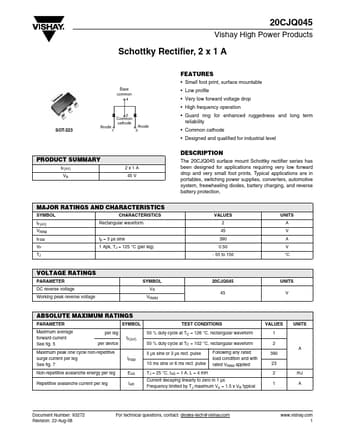

20CJQ045 Vishay High Power Products Schottky Rectifier, 2 x 1 A SOT-223 Base common 4 2 Common cathode Anode Anode 13 PRODUCT SUMMARY IF(AV) VR 2x1A 45 V MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM IFSM tp = 5 µs sine VF 1 Apk, TJ = 125 °C (per leg) TJ FEATURES • Small foot print, surface mountable • Low profile • Very low forward voltage drop • High frequency operation • Guard ring for enhanced ruggedness and long term reliability • Common cathode • Designed and qualified for industrial level DESCRIPTION The 20CJQ045 surface mount Schottky rectifier series has been designed for applications requiring very low forward drop and very small foot prints.
