20CJQ045PBF Schottky Rectifier

20CJQ045PBF Description

20CJQ045PbF Vishay High Power Products Schottky Rectifier, 2 x 1 A SOT-223 Base common 4 Anode 1 Anode 23 Common cathode PRODUCT SUMMARY IF(AV) V.
The 20CJQ045PbF surface mount Schottky rectifier series has been designed for applications requiring very low forward drop and very small foot prints.

20CJQ045PBF Features

* Small foot print, surface mountable
* Low profile
* Very low forward voltage drop Available RoHS
* COMPLIANT
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Common cathode
* Lead (Pb)-free

20CJQ045PBF Applications

* requiring very low forward drop and very small foot prints. Typical applications are in portables, switching power supplies, converters, automotive system, freewheeling diodes, battery charging, and reverse battery protection. VALUES 2 45

📥 Download Datasheet

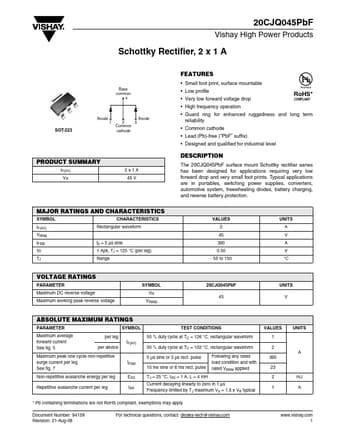

Preview of 20CJQ045PBF PDF
