PI2125 - 12 Amp Full-Function Active ORing Solution

Name: PI2125
SKU: PI2125-653074

Vicor Corporation

📥 Download Datasheet

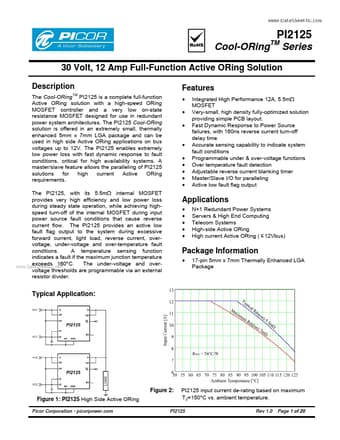

PI2125 Datasheet Preview — Preview of PI2125 PDF

Datasheet Details

Part number	PI2125
Manufacturer	Vicor Corporation
File Size	1.23 MB
Description	12 Amp Full-Function Active ORing Solution
Datasheet	PI2125_VicorCorporation.pdf

PI2125 Product details

Description

The Cool-ORing PI2125 is a complete full-function Active ORing solution with a high-speed ORing MOSFET controller and a very low on-state resistance MOSFET designed for use in redundant power system architectures.

Features

Integrated High Performance 12A, 5.5mΩ MOSFET Very-small, high density fully-optimized solution providing simple PCB layout. Fast Dynamic Response to Power Source failures, with 160ns reverse current turn-off delay time Accurate sensing capability to indicate system fault conditions Programmable under & over-voltage functions Over temperature fault detection Adjustable reverse current blanking timer Master/.
