PI2121 - 24 Amp Full-Function Active ORing Solution

Description

The Cool-ORing PI2121 is a complete full-function Active ORing solution with a high-speed ORing MOSFET controller and a very low on-state resistance MOSFET designed for use in redundant power system architectures.

Features

  • Integrated High Performance 24A, 1.5mΩ MOSFET Very-small, high density fully-optimized solution providing simple PCB layout. Fast Dynamic Response to Power Source failures, with 160ns reverse current turn-off delay time Accurate sensing capability to indicate system fault conditions Programmable under & over-voltage functions Over temperature fault detection Adjustable reverse current blanking timer Master/.

📥 Download Datasheet

Datasheet Details

Part number PI2121
Manufacturer Vicor Corporation
File Size 1.25 MB
Description 24 Amp Full-Function Active ORing Solution
Datasheet download datasheet PI2121 Datasheet

📁 Similar Datasheet

  • PI2126 - 12 Amp Full-Function Active ORing Solution (Picor)
  • PI2127 - 12 Amp Full-Function Active ORing Solution (Picor)
  • PI2140DG-22H - HIGH POWER DROP-IN ISOL (PREMIER DEVICES)
  • PI2007 - Universal High Side Active ORing Controller IC (Picor)
  • PI2061 - High Side High Voltage Load Disconnect Switch Controller IC (Picor)
  • PI29FCT2520T - FAST CMOS MULTILEVEL PIPELINE REGISTERS (Pericom Semiconductor Corporation)
  • PI29FCT520T - FAST CMOS MULTILEVEL PIPELINE REGISTERS (Pericom Semiconductor Corporation)
  • PI29FCT521T - FAST CMOS MULTILEVEL PIPELINE REGISTERS (Pericom Semiconductor Corporation)
  • PI2B4300 - 2.5V/3.3V 4-Bit / 3-Port Matrix Switch (ETC)
  • PI2B4300L - 2.5V/3.3V 4-Bit / 3-Port Matrix Switch (ETC)
Other Datasheets by Vicor Corporation
  • PI2122 - 12Amp Active ORing Solution
  • PI2123 - 15 Amp Full-Function Active ORing Solution
  • PI2125 - 12 Amp Full-Function Active ORing Solution
  • PI2001 - Universal Active ORing Controller
  • PI2002 - Active ORing Controller
  • PI2003 - Universal Active ORing Controller

Full PDF Text Transcription

Click to expand full text

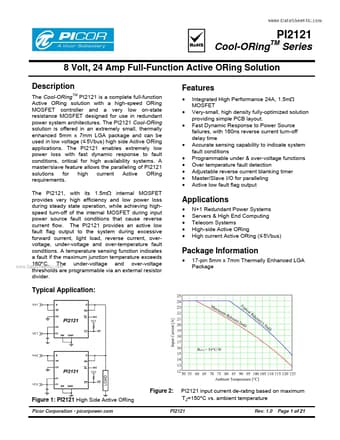

PI2121 Cool-ORing TM Series 8 Volt, 24 Amp Full-Function Active ORing Solution Description The Cool-ORing PI2121 is a complete full-function Active ORing solution with a high-speed ORing MOSFET controller and a very low on-state resistance MOSFET designed for use in redundant power system architectures. The PI2121 Cool-ORing solution is offered in an extremely small, thermally enhanced 5mm x 7mm LGA package and can be used in low voltage (≤ 5Vbus) high side Active ORing applications. The PI2121 enables extremely low power loss with fast dynamic response to fault conditions, critical for high availability systems. A master/slave feature allows the paralleling of PI2121 solutions for high current Active ORing requirements. The PI2121, with its 1.
