PI2002 - Active ORing Controller

Name: PI2002
SKU: PI2002-653069

Vicor Corporation

📥 Download Datasheet

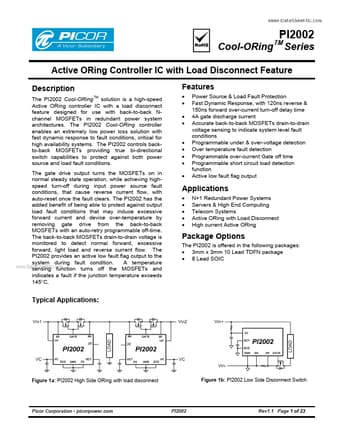

PI2002 Datasheet Preview — Preview of PI2002 PDF

Datasheet Details

Part number	PI2002
Manufacturer	Vicor Corporation
File Size	1.26 MB
Description	Active ORing Controller
Datasheet	PI2002_VicorCorporation.pdf

PI2002 Product details

Description

The PI2002 Cool-ORingTM solution is a high-speed Active ORing controller IC with a load disconnect feature designed for use with back-to-back Nchannel MOSFETs in redundant power system architectures.

Features

Power Source & Load Fault Protection Fast Dynamic Response, with 120ns reverse & 150ns forward over-current turn-off delay time 4A gate discharge current Accurate back-to-back MOSFETs drain-to-drain voltage sensing to indicate system level fault conditions Programmable under & over-voltage detection Over temperature fault detection Programmable over-current Gate off time Programmable short circuit load dete.
