PI2140DG-22H - HIGH POWER DROP-IN ISOL

PREMIER DEVICES

PI2140DG-22H Datasheet Preview — Preview of PI2140DG-22H PDF

Datasheet Details

Part number	PI2140DG-22H
Manufacturer	PREMIER DEVICES
File Size	108.34 KB
Description	HIGH POWER DROP-IN ISOL
Datasheet	PI2140DG-22H_PREMIERDEVICES.pdf

PI2140DG-22H Product details

Description

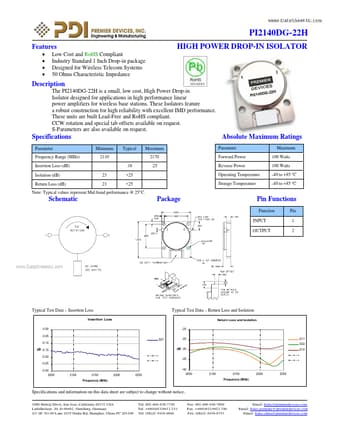

Specifications Parameter Frequency Range (MHz) Insertion Loss (dB) Isolation (dB) Return Loss (dB) 23 23 Minimum 2110 .18 >25 >25 Typical Maximum 2170 .25 Absolute Maximum Ratings Parameter Forward Power Reverse Power Operating Temperature Storage Temperature Maximum 100 Watts 100 Watts -40 to +85 °C -40 to +85 °C Note: Typical values represent Mid-band performance @ 25°C.Schematic Package Pin Functions Function INPUT OUTPUT Pin 1 2 www.DataSheet4U.com Typical Test Data Insert

Features

Low Cost and RoHS Compliant Industry Standard 1 Inch Drop-in package Designed for Wireless Telecom Systems 50 Ohms Characteristic Impedance The PI2140DG-22H is a small, low cost, High Power Drop-in Isolator designed for.
