VS4504AS P-Channel Advanced Power MOSFET

VS4504AS Description

.

VS4504AS Features

* P-Channel，-5V Logic Level Control
* Enhancement mode
* Low on-resistance RDS(on) @ VGS=-4.5 V
* 100% Avalanche test
* Pb-free lead plating; RoHS compliant VS4504AS -40V/-18A P-Channel Advanced Power MOSFET V DS -40 V R @DS(on),TYP VGS=-10 V 6.8 mΩ R @DS(on),TYP VGS=-4.5 V

📥 Download Datasheet

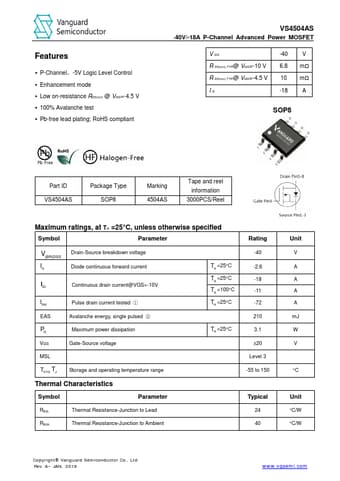

Preview of VS4504AS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS4504AS
Manufacturer
Vanguard Semiconductor
File Size
471.33 KB
Datasheet
VS4504AS-VanguardSemiconductor.pdf
Description
P-Channel Advanced Power MOSFET
