VS4604AD N-Channel 40V MOSFET

VS4604AD Description

VS4604AD-VB VS4604AD-VB Datasheet N-Channel 40-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 40 0.0016 at VGS = 10 V 0.0020 at VGS = 4.5 V.

VS4604AD Features

* Trench Power MOSFET

VS4604AD Applications

* Synchronous Rectification
* Power Supplies G www. VBsemi. com RoHS COMPLIANT GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Curren

📥 Download Datasheet

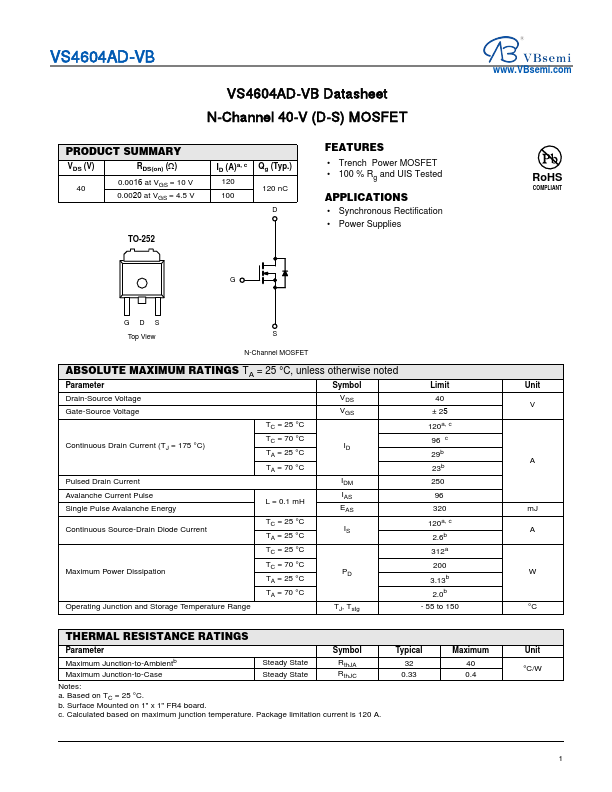

Preview of VS4604AD PDF

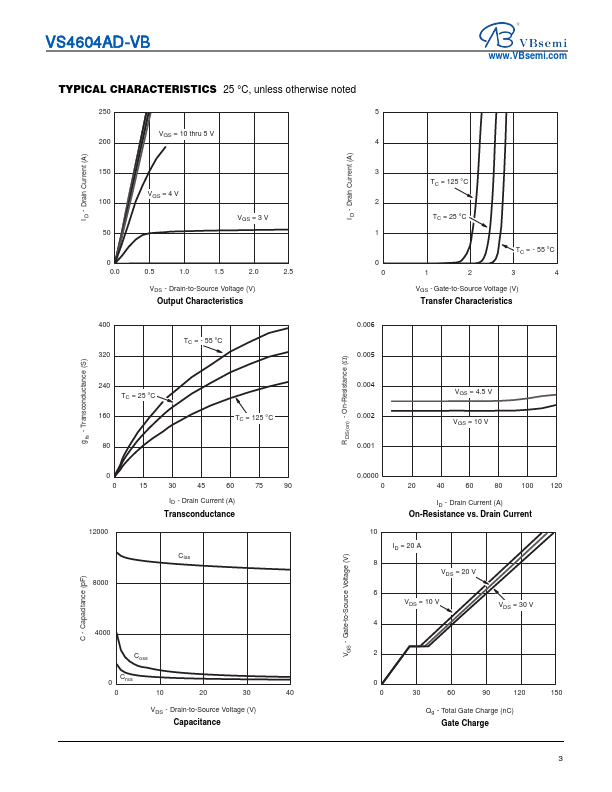

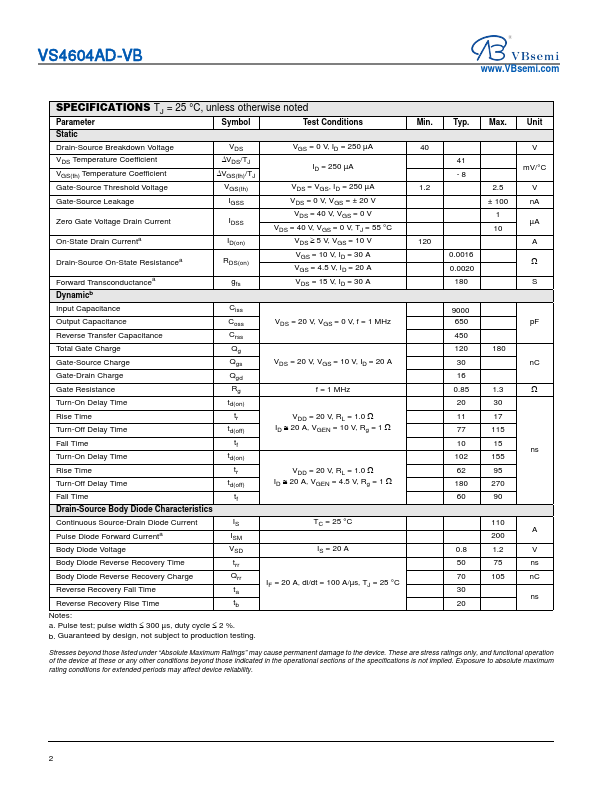

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS4604AD
Manufacturer
VBsemi
File Size
248.07 KB
Datasheet
VS4604AD-VBsemi.pdf
Description
N-Channel 40V MOSFET
