VS3628DB - N-Channel Advanced Power MOSFET

VS3628DB Description

VS3628DB 30V Dual Asymmetric N-Channel Advanced Power MOSFET .

VS3628DB Features

* Dual Asymmetric N-Channel
* High Current Capability
* Low on-resistance RDS(on) @ VGS=4.5 V
* Low Gate Charge
* Pb-free lead plating; RoHS compliant V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5V ID 30 30 V 14 6 mΩ 23 9 mΩ 20 40 A DFN3x3 Part ID VS3628DB Package Type DF

📥 Download Datasheet

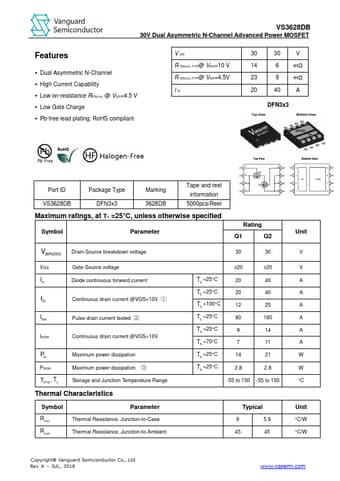

Preview of VS3628DB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3628DB
Manufacturer
Vanguard Semiconductor
File Size
808.09 KB
Datasheet
VS3628DB-VanguardSemiconductor.pdf
Description
N-Channel Advanced Power MOSFET
