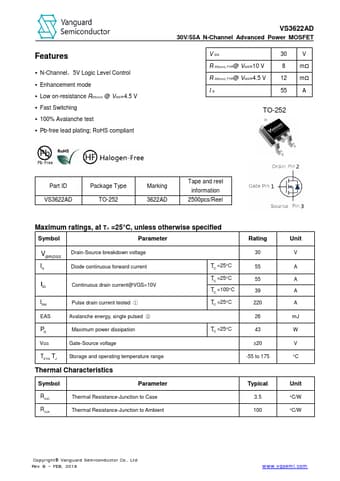

VS3622AD - N-Channel Advanced Power MOSFET

Key Features

  • N-Channel，5V Logic Level Control.
  • Enhancement mode.
  • Low on-resistance RDS(on) @ VGS=4.5 V.
  • Fast Switching.
  • 100% Avalanche test.
  • Pb-free lead plating; RoHS compliant VS3622AD 30V/55A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 30 V 8 mΩ 12 mΩ 55 A TO-252 Part ID VS3622AD Package Type TO-252 Marking 3622AD Tape and reel information 2500pcs/Reel Maximum ratings, at TA =25°C, unless otherwise specified Symbol Parame.

📥 Download Datasheet

Datasheet Details

Part number VS3622AD
Manufacturer Vanguard Semiconductor
File Size 376.99 KB
Description N-Channel Advanced Power MOSFET
Datasheet download datasheet VS3622AD Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
VS3622AD N-Channel 30V MOSFET VBsemi
VS3622DP Dual N-Channel 30V MOSFET VBsemi
VS3606AP N-Channel 30V MOSFET VBsemi
VS3610AE N-Channel 30V MOSFET VBsemi
VS3614GE 30V/31A N-Channel Advanced Power MOSFET Vergiga

Other Datasheets by Vanguard Semiconductor

Part Number Description
VS3622AA N-Channel Advanced Power MOSFET
VS3622AE N-Channel Advanced Power MOSFET
VS3622AS N-Channel Advanced Power MOSFET
VS3622DE 30V/35A Dual N-Channel Advanced Power MOSFET
VS3622DP Dual N-Channel Advanced Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Features  N-Channel，5V Logic Level Control  Enhancement mode  Low on-resistance RDS(on) @ VGS=4.5 V  Fast Switching  100% Avalanche test  Pb-free lead plating; RoHS compliant VS3622AD 30V/55A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.
