2SK2699 - N-Channel 600V MOSFET

VBsemi

The 2SK2699 by VBsemi is a N-Channel 600V MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

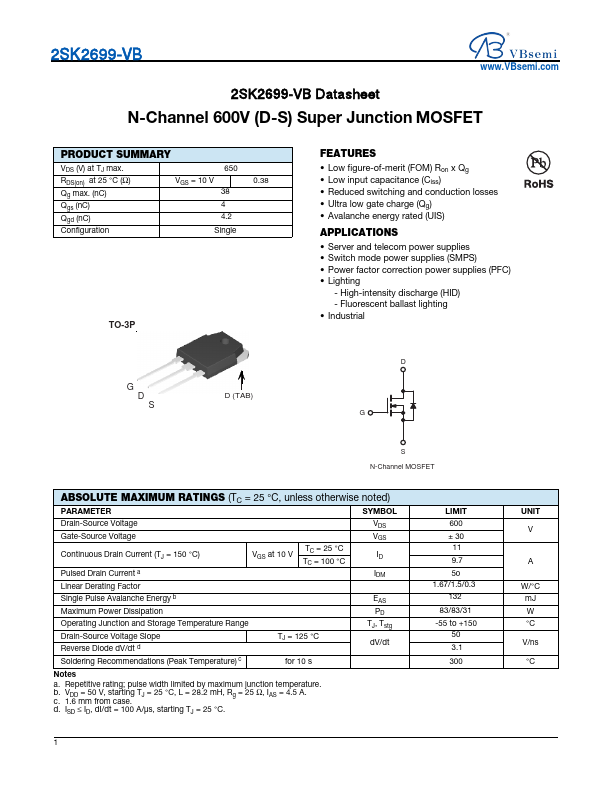

2SK2699 N-Channel 600V MOSFET by VBsemi - Datasheet Preview — Official preview page of the 2SK2699 N-Channel 600V MOSFET datasheet (VBsemi).

Datasheet Details

Part number	2SK2699
Manufacturer	VBsemi
File Size	237.21 KB
Description	N-Channel 600V MOSFET
Datasheet	2SK2699-VBsemi.pdf

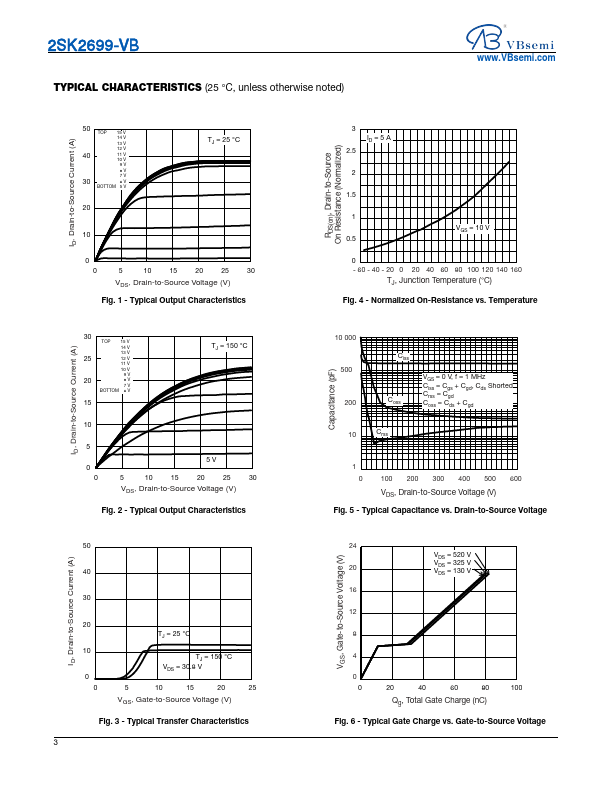

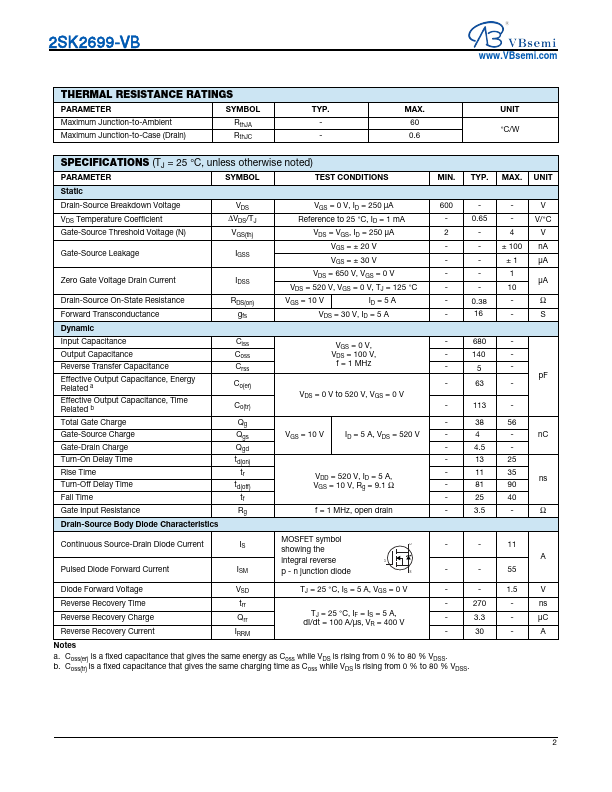

Additional preview pages of the 2SK2699 datasheet.

2SK2699 Product details

Features

Low figure-of-merit (FOM) Ron x Qg.
Low input capacitance (Ciss).
Reduced switching and conduction losses.
Ultra low gate charge (Qg).
Avalanche energy rated (UIS).
