2SK2695-01 - N-channel MOS-FET

Features

  • High Current Low On-Resistance No Secondary Breakdown Low Driving Power Avalanche Rated N-channel MOS-FET 700V 1,85Ω ±5A 60W > Outline Drawing >.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SK2698 - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK2699 - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK2699 - N-Channel 600V MOSFET (VBsemi)
  • 2SK260 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK2601 - N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK2601 - N-Channel MOSFET (INCHANGE)
  • 2SK2602 - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK2603 - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK2604 - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK2605 - Silicon N-Channel MOSFET (Toshiba Semiconductor)
Other Datasheets by Fuji Electric

Full PDF Text Transcription

Click to expand full text

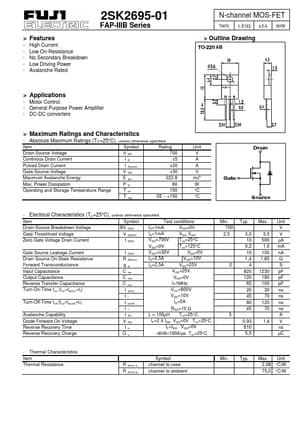

2SK2695-01 FAP-IIIB Series > Features High Current Low On-Resistance No Secondary Breakdown Low Driving Power Avalanche Rated N-channel MOS-FET 700V 1,85Ω ±5A 60W > Outline Drawing > Applications - Motor Control - General Purpose Power Amplifier - DC-DC converters > Maximum Ratings and Characteristics - Absolute Maximum Ratings (TC=25°C), unless otherwise specified Item Drain-Source-Voltage Continous Drain Current Pulsed Drain Current Gate-Source-Voltage Maximum Avalanche Energy Max. Power Dissipation Operating and Storage Temperature Range Symbol V DS ID I D(puls) V GS E AV PD T ch T stg Rating 700 ±5 ±20 ±30 222.
