CHA3667aQDG - 7-20GHz Medium Power Amplifier

Product Overview

United Monolithic Semiconductors

📥 Download Datasheet

CHA3667aQDG 7-20GHz Medium Power Amplifier by United Monolithic Semiconductors - Datasheet Preview — Datasheet preview – CHA3667aQDG

Datasheet Details

Part number	CHA3667aQDG
Manufacturer	United Monolithic Semiconductors
File Size	348.05 KB
Description	7-20GHz Medium Power Amplifier
Datasheet	CHA3667aQDG Datasheet

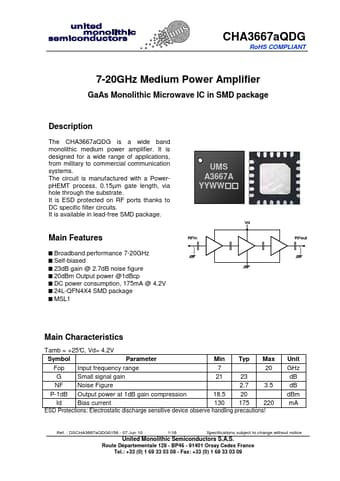

Additional preview pages of the CHA3667aQDG datasheet.

Product details

Description

The CHA3667aQDG is a wide band monolithic medium power amplifier.

Features

Broadband performance 7-20GHz.
Self-biased.
23dB gain @ 2.7dB noise figure.
20dBm Output power @1dBcp.
DC power consumption, 175mA @ 4.2V.
24L-QFN4X4 SMD package.
MSL1 UMS A3667A YYWW RFin Vd RFout Main Characteristics Tamb = +25°C, Vd= 4.2V Symbol Parameter Min Typ Max Fop Input frequency range 7 20 G Small signal gain 21 23 NF Noise Figure 2.7 3.5 P-1dB Output power at 1dB gain compression 18.5 20 Id Bias current 130 175 220 ESD Prote.
