CHA3667A - 7-20GHz Medium Power Amplifier

Product Overview

United Monolithic Semiconductors

Datasheet Details

Part number	CHA3667A
Manufacturer	United Monolithic Semiconductors
File Size	150.66 KB
Description	7-20GHz Medium Power Amplifier
Datasheet	CHA3667A Datasheet

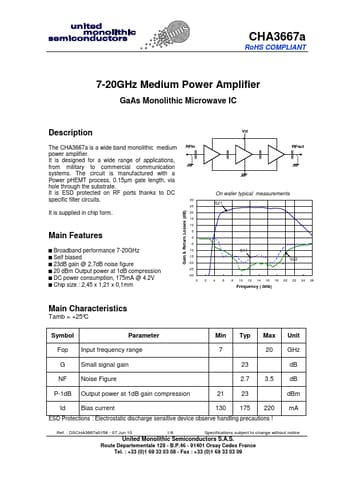

Additional preview pages of the CHA3667A datasheet.

Product details

Description

Vd The CHA3667a is a wide band monolithic medium power amplifier.It is designed for a wide range of applications, from military to commercial communication systems.The circuit is manufactured with a Power pHEMT process, 0.15µm gate length, via hole through the substrate.It is ESD protected on RF ports thanks to DC specific filter circuits.It is supplied in chip form.Main

Features

Broadband performance 7-20GHz.
Self biased.
23dB gain @ 2.7dB noise figure.
20 dBm Output power at 1dB compression.
DC power consumption, 175mA @ 4.2V.
Chip size : 2,45 x 1,21 x 0,1mm Gain & Return Losses (dB) RFin RFout On wafer typical measurements 30 S21 25 20 15 10 5 0 -5 -10 S11 -15 S22 -20 -25 -30 0 2 4 6 8 10 12 14 16 18 20 22 24 26 Frequency ( GHz) Main Characteristics Tamb = +25°C Symbol Parameter Min Typ Max Unit Fop Input frequency range 7 20 G.
