CHA3664-QAG - 5-21GHz Driver Amplifier

Description

The CHA3664-QAG is a two-stage general purpose monolithic medium power amplifier.

It is designed for a wide range of applications, from military to commercial communication systems.

Features

  • Broadband performances: 5-21GHz.
  • 20.5dBm saturated output power.
  • 15dB gain.
  • DC bias: Vd=5Volt @ Id=120mA.
  • 16L-QFN3x3.
  • MSL1 Main Electrical Characteristics Tamb. = +25°C Symbol Parameter Freq Frequency range Gain Linear Gain Pout-1dB Output Power @1dB gain compression Psat Saturated Output Power Id Drain current Min Typ Max Unit 5 21 GHz 12.5 15 dB 17.5 19.5 dBm 19 20.5 dBm 120 mA Ref. : DSCHA3364-QAG0301 - 27 Oct 20 1/12 Specifications subjec.

📥 Download Datasheet

Datasheet Details

Part number CHA3664-QAG
Manufacturer United Monolithic Semiconductors
File Size 888.36 KB
Description 5-21GHz Driver Amplifier
Datasheet download datasheet CHA3664-QAG Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CHA3080-98F 71 ~ 76 GHz Medium Power Amplifier UMS
CHA-20NF (CHA-20xx) Coaxial Attenuators Component General
CHA-20NM (CHA-20xx) Coaxial Attenuators Component General
CHA-20NMF (CHA-20xx) Coaxial Attenuators Component General
CHA-20SF (CHA-20xx) Coaxial Attenuators Component General

Other Datasheets by United Monolithic Semiconductors

Part Number Description
CHA3660-QQG 21-27.5GHz Medium Power Amplifier
CHA3665-QAG 5-21GHz Driver Amplifier
CHA3666 GaAs Monolithic Microwave
CHA3666-99F Low Noise Amplifier
CHA3666-FAA 6-16GHz Low Noise Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

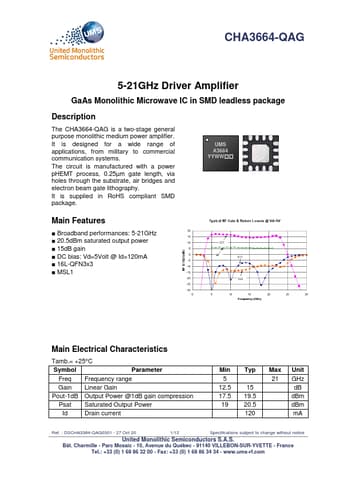

UMS A368687A YYWWG CHA3664-QAG UMS A366878A YYWWG 5-21GHz Driver Amplifier GaAs Monolithic Microwave IC in SMD leadless package Description The CHA3664-QAG is a two-stage general purpose monolithic medium power amplifier. It is designed for a wide range of applications, from military to commercial communication systems. The circuit is manufactured with a power pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography. It is supplied in RoHS compliant SMD package. YAYU3WY6MYA68WUW3S78MYW6AA6YSGU34W6M68WS78AG UMS A368687A YYWWG Main Features ■ Broadband performances: 5-21GHz ■ 20.5dBm saturated output power ■ 15dB gain ■ DC bias: Vd=5Volt @ Id=120mA ■ 16L-QFN3x3 ■ MSL1 Main Electrical Characteristics Tamb.
