LR9113 - LOW NOISE 300mA LDO REGULATOR

UTC

The LR9113 by UTC is a LOW NOISE 300mA LDO REGULATOR. Below is the official datasheet preview.

📥 Download Datasheet

LR9113 LOW NOISE 300mA LDO REGULATOR by UTC - Datasheet Preview — Official preview page of the LR9113 LOW NOISE 300mA LDO REGULATOR datasheet (UTC).

Datasheet Details

Part number	LR9113
Manufacturer	UTC
File Size	666.84 KB
Description	LOW NOISE 300mA LDO REGULATOR
Datasheet	LR9113-UTC.pdf

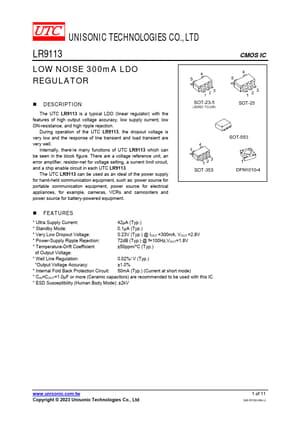

Additional preview pages of the LR9113 datasheet.

LR9113 Product details

Description

The UTC LR9113 is a typical LDO (linear regulator) with the

Features

Ultra Supply Current: 42µA (Typ. ).
Standby Mode: 0.1µA (Typ. ).
Very Low Dropout Voltage: 0.23V (Typ. ) @ IOUT =300mA, VOUT =2.8V.
Power-Supply Ripple Rejection: 72dB (Typ. ) @ f=100Hz,VOUT=1.8V.
Temperature-Drift Coefficient ±50ppm/°C (Typ. ) of Output Voltage:.
Well Line Regulation: 0.02%/ V (Typ. ).
Output Voltage Accuracy: ±1.0%.
Internal Fold Back Protection Circuit: 50mA (Typ. ) (Current at short mode).
CIN=COUT=1.0µF or more (Ceramic.
