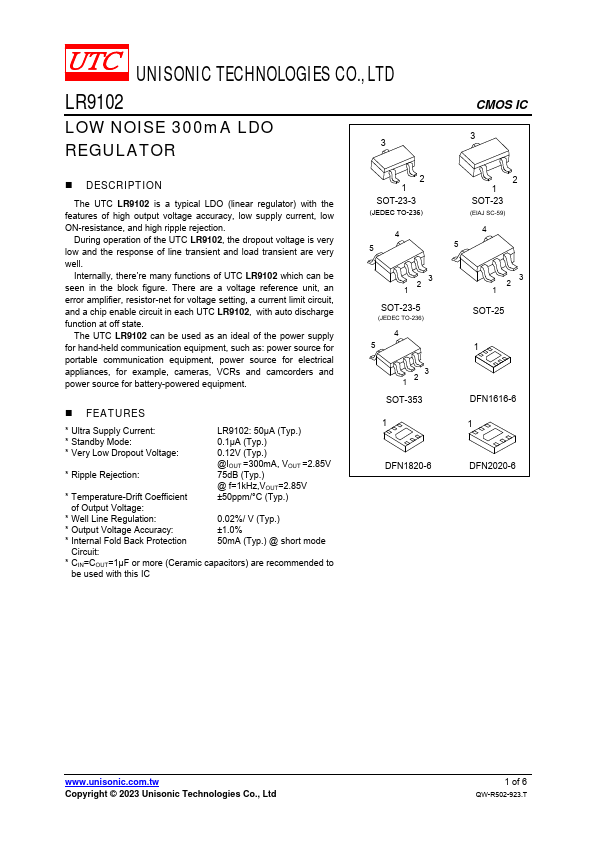

Description
The UTC LR9102 is a typical LDO (linear regulator) with the
Features
- Ultra Supply Current:
LR9102: 50µA (Typ. ).
- Standby Mode:
0.1µA (Typ. ).
- Very Low Dropout Voltage:
0.12V (Typ. ).
- Ripple Rejection:
@IOUT =300mA, VOUT =2.85V 75dB (Typ. )
@ f=1kHz,VOUT=2.85V.
- Temperature-Drift Coefficient
±50ppm/°C (Typ. )
of Output Voltage:.
- Well Line Regulation:
0.02%/ V (Typ. ).
- Output Voltage Accuracy:
±1.0%.
- Internal Fold Back Protection
50mA (Typ. ) @ short mode
Circuit:.
- CIN=COUT=1µF or more (Ceramic capacitors) a.
