LR9102A, LR9102 - LOW NOISE 300mA LDO REGULATOR

UTC

The LR9102A by UTC is a LOW NOISE 300mA LDO REGULATOR. Below is the official datasheet preview.

📥 Download Datasheet

LR9102A LOW NOISE 300mA LDO REGULATOR by UTC - Datasheet Preview — Official preview page of the LR9102A LOW NOISE 300mA LDO REGULATOR datasheet (UTC).

Datasheet Details

Part number	LR9102A, LR9102
Manufacturer	UTC
File Size	264.29 KB
Description	LOW NOISE 300mA LDO REGULATOR
Datasheet	LR9102-UTC.pdf
Note	This datasheet PDF includes multiple part numbers: LR9102A, LR9102. Please refer to the document for exact specifications by model.

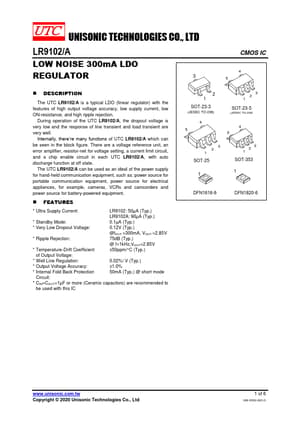

Additional preview pages of the LR9102A datasheet.

LR9102A Product details

Description

The UTC LR9102/A is a typical LDO (linear regulator) with the

Features

Ultra Supply Current: LR9102: 50µA (Typ. ) LR9102A: 90µA (Typ. ).
Standby Mode: 0.1µA (Typ. ).
Very Low Dropout Voltage: 0.12V (Typ. ) @IOUT =300mA, VOUT =2.85V.
Ripple Rejection: 75dB (Typ. ) @ f=1kHz,VOUT=2.85V.
Temperature-Drift Coefficient ±50ppm/°C (Typ. ) of Output Voltage:.
Well Line Regulation: 0.02%/ V (Typ. ).
Output Voltage Accuracy: ±1.0%.
Internal Fold Back Protection 50mA (Typ. ) @ short mode Circuit:.
CIN=COUT=1µF or more.
