LR9103 - LOW NOISE 150mA LDO REGULATOR

UTC

The LR9103 by UTC is a LOW NOISE 150mA LDO REGULATOR. Below is the official datasheet preview.

📥 Download Datasheet

LR9103 LOW NOISE 150mA LDO REGULATOR by UTC - Datasheet Preview — Official preview page of the LR9103 LOW NOISE 150mA LDO REGULATOR datasheet (UTC).

Datasheet Details

Part number	LR9103
Manufacturer	UTC
File Size	265.35 KB
Description	LOW NOISE 150mA LDO REGULATOR
Datasheet	LR9103-UTC.pdf

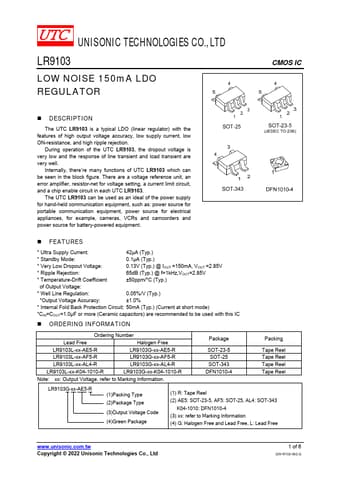

Additional preview pages of the LR9103 datasheet.

LR9103 Product details

Description

The UTC LR9103 is a typical LDO (linear regulator) with the

Features

Ultra Supply Current: 42µA (Typ. ).
Standby Mode: 0.1µA (Typ. ).
Very Low Dropout Voltage: 0.13V (Typ. ) @ IOUT =150mA, VOUT =2.85V.
Ripple Rejection: 65dB (Typ. ) @ f=1kHz,VOUT=2.85V.
Temperature-Drift Coefficient ±50ppm/°C (Typ. ) of Output Voltage:.
Well Line Regulation: 0.05%/V (Typ. ).
Output Voltage Accuracy: ±1.0%.
Internal Fold Back Protection Circuit: 50mA (Typ. ) (Current at short mode).
CIN=COUT=1.0µF or more (Ceramic capacitors) a.
