ST485EBDR - Slew-Rate-Limited RS-485/RS-422 Transceivers

The ST485EBDR by UMW is a Slew-Rate-Limited RS-485/RS-422 Transceivers. Below is the official datasheet preview.

Datasheet Details

Part number	ST485EBDR
Manufacturer	UMW
File Size	1.00 MB
Description	Slew-Rate-Limited RS-485/RS-422 Transceivers
Datasheet	ST485EBDR-UMW.pdf
Additional preview pages of the ST485EBDR datasheet.

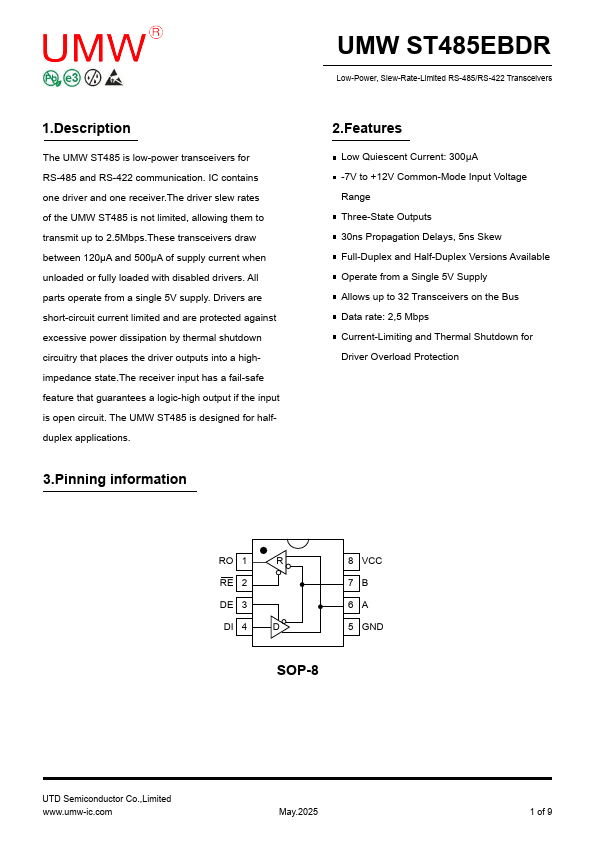

The UMW ST485 is low-power transceivers for RS-485 and RS-422 communication.

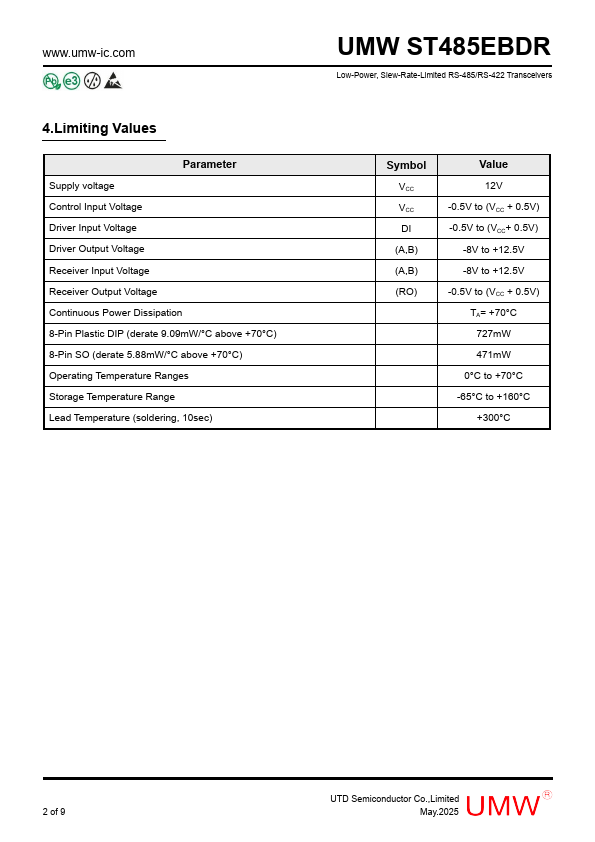

Low Quiescent Current: 300µA -7V to +12V Common-Mode Input Voltage Range Three-State Outputs 30ns Propagation Delays, 5ns Skew Full-Duplex and Half-Duplex Versions Available Operate from a Single 5V Supply Allows up to 32 Transceivers on the Bus Data rate: 2,5 Mbps Current-Limiting and Thermal Shutdown for Driver Overload Protection RO 1 R RE 2 DE 3 DI 4 D 8 VCC 7B 6A 5 GND SOP-8 UTD Semiconductor Co. ,Limited www. umw-ic. com May.2025 1 of 9 www. umw-ic. com 4.Limiting Values Parameter S.
