ST485B - Low power RS-485/RS-422 transceiver

Description

The ST485 is al low power transceiver for RS-485 and RS-422 communication.

Each part contains one driver and one receiver.

This transceiver draw 300 µA (typ.) of supply current when unloaded or fully loaded with disabled drivers.

Features

  • Low quiescent current: 300 µA.
  • Designed for RS-485 interface.

📥 Download Datasheet

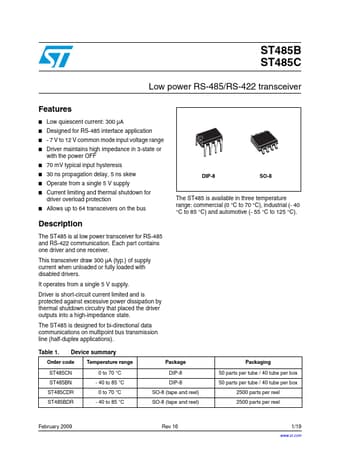

Datasheet preview – ST485B

Datasheet Details

Part number ST485B
Manufacturer STMicroelectronics
File Size 686.33 KB
Description Low power RS-485/RS-422 transceiver
Datasheet download datasheet ST485B Datasheet
Additional preview pages of the ST485B datasheet.

📁 Similar Datasheet

  • ST485 - Low power RS-485/RS-422 transceiver (ST Microelectronics)
  • ST485E - LOW POWER RS-485/RS-422 TRANSCEIVER (ST Microelectronics)
  • ST485EBDR - Slew-Rate-Limited RS-485/RS-422 Transceivers (UMW)
  • ST480M - Integrated 3-axis Magnetometer (SENODIA)
  • ST4828N - Dual N Channel Enhancement Mode MOSFET (Stanson)
  • ST486DX - PROGRAMMING MANUAL (ST Microelectronics)
  • ST486DX - ST 486 DX ASIC CORE (ST Microelectronics)
  • ST48D50 - DC Control Solid-State Relays (Teledyne)
  • ST4045C - SCHOTTKY RECTIFIER (SMC Diode)
  • ST4130A - Crystal Clock Oscillator (SaRonix)
Other Datasheets by STMicroelectronics
  • ST485A - Very high speed low power RS-485/RS-422 transceiver
  • ST485C - Low power RS-485/RS-422 transceiver
  • ST485EB - RS-485/RS-422 transceiver
  • ST485EC - RS-485/RS-422 transceiver
  • ST485ER - Low power RS-485/RS-422 transceiver
  • ST485EX - RS-485/RS-422 transceiver
  • ST40RA - 32-bit Embedded SuperH Device
  • ST4485EB - RS-485/RS-422 transceiver

Full PDF Text Transcription

Click to expand full text
ST485B ST485C Low power RS-485/RS-422 transceiver Features ■ Low quiescent current: 300 µA ■ Designed for RS-485 interface application ■ - 7 V to 12 V common mode input voltage range ■ Driver maintains high impedance in 3-state or with the power OFF ■ 70 mV typical input hysteresis ■ 30 ns propagation delay, 5 ns skew ■ Operate from a single 5 V supply ■ Current limiting and thermal shutdown for driver overload protection ■ Allows up to 64 transceivers on the bus Description The ST485 is al low power transceiver for RS-485 and RS-422 communication. Each part contains one driver and one receiver. This transceiver draw 300 µA (typ.) of supply current when unloaded or fully loaded with disabled drivers. It operates from a single 5 V supply.
