ST485EC, ST485EB RS-485/RS-422 transceiver

ST485EC Description

ST485EB ST485EC - ST485EX ±15 kV ESD protected, low power RS-485/RS-422 transceiver .
SO-8 Driver is short-circuit current limited and is protected against excessive power dissipation by thermal shutdown circuitry that place the driver.

ST485EC Features

* Low quiescent current: 300 µA

ST485EC Applications

* . The ST485E is a low power transceiver for RS485 and RS-422 communication. Each driver output and receiver input is protected against ± 15 kV electrostatic discharge (HBM) (ESD) shocks, without latch-up. These parts contain one driver and one receiver in half duplex configuration. This transceiver

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ST485EC, ST485EB. Please refer to the document for exact specifications by model.

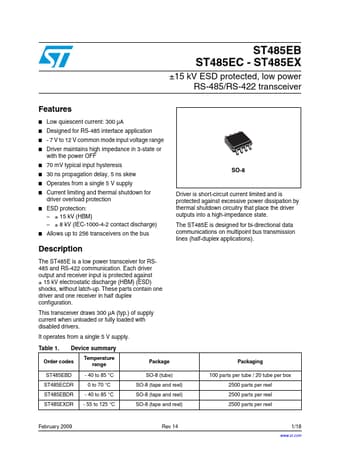

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST485EC, ST485EB
Manufacturer
STMicroelectronics ↗
File Size
668.15 KB
Datasheet
ST485EB-STMicroelectronics.pdf
Description
RS-485/RS-422 transceiver
Note
This datasheet PDF includes multiple part numbers: ST485EC, ST485EB.
Please refer to the document for exact specifications by model.
