SN74LVC1G125 high performance non-inverting buffer

SN74LVC1G125 Description

UMW SN74LVC1G125 1..
The UMW SN74LVC1G125 is a high performance non-inverting buffer operating from a 1.

SN74LVC1G125 Features

* Designed for 1.65V to 5.5V VCC Operation Overvoltage Tolerant Inputs 24 mA Balanced Output Sink and Source Capability Near Zero Static Supply Current Substantially Reduces System Power Requirements These Devices are Pb-Free and are RoHS Compliant 3-State OE Input is Active-Low OE 1 INA 2 GND 3 5 V

📥 Download Datasheet

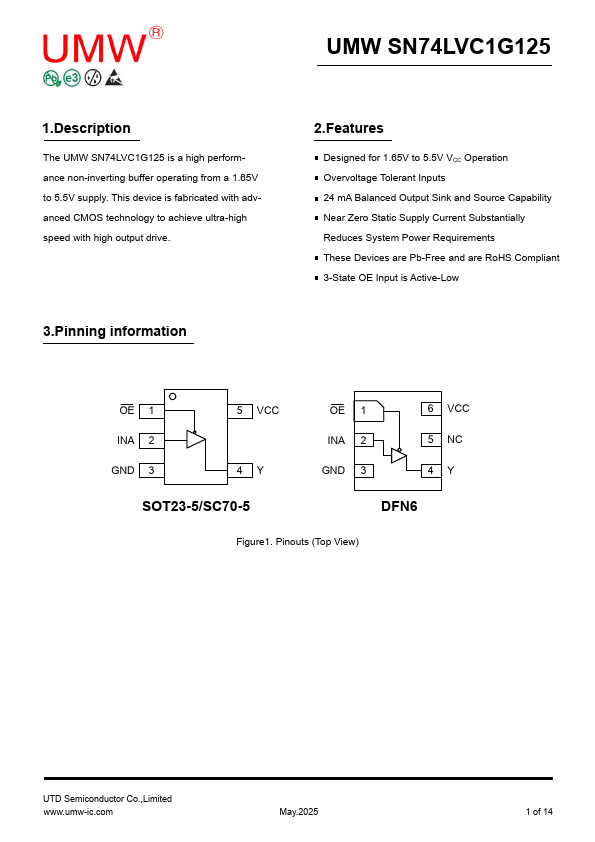

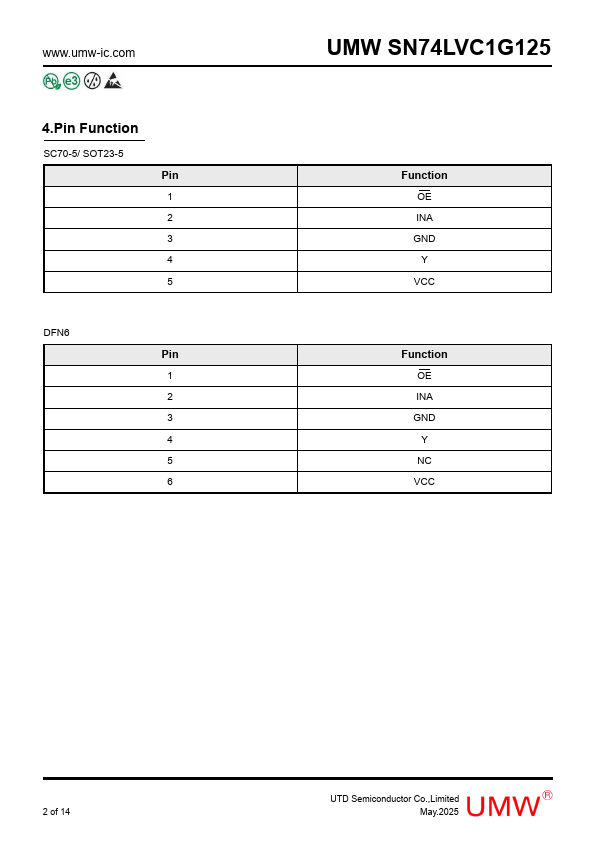

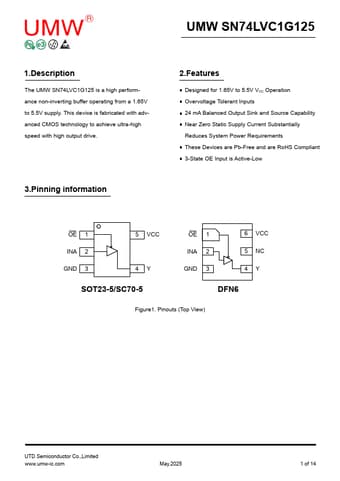

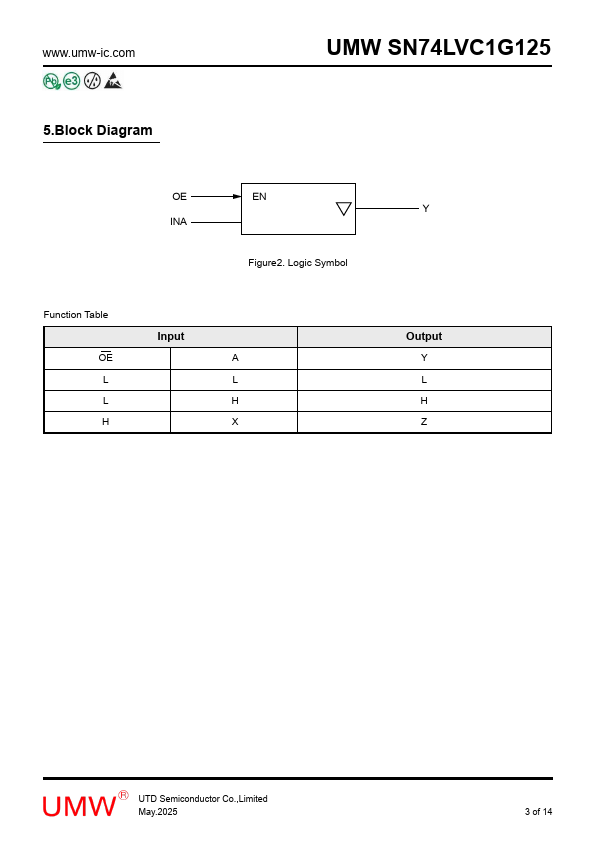

SN74LVC1G125 Datasheet Preview — Preview of SN74LVC1G125 PDF

Datasheet Details

Part number: SN74LVC1G125
Manufacturer: UMW
File Size: 210.11 KB
Datasheet: SN74LVC1G125-UMW.pdf
Description: high performance non-inverting buffer
