SI2304A - 30V N-ChanneI MOSFET

📥 Download Datasheet

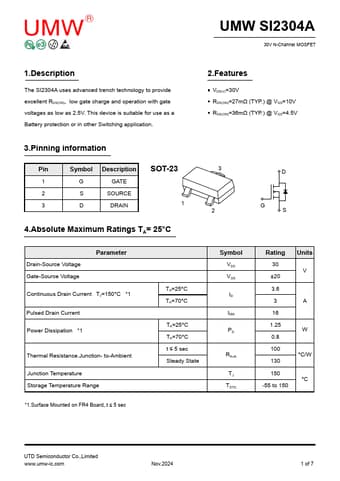

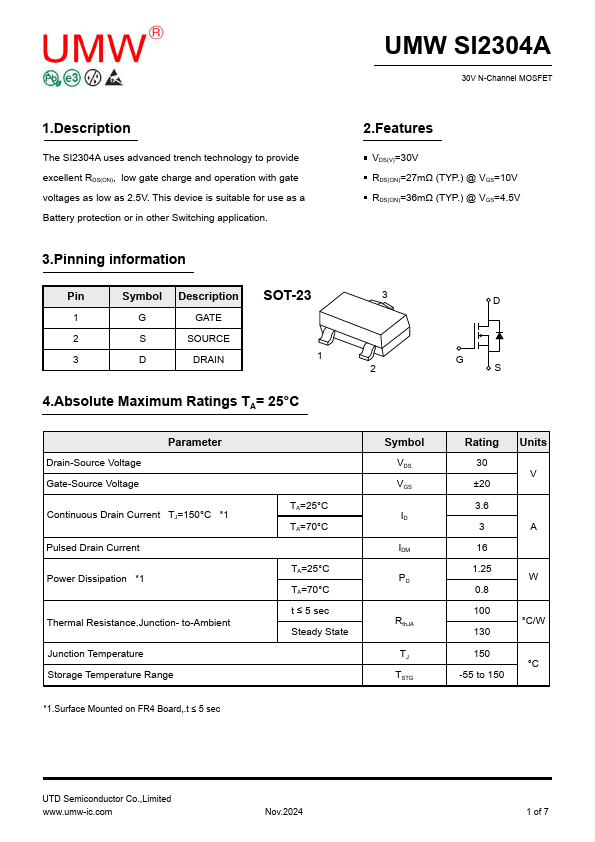

SI2304A Datasheet Preview — Preview of SI2304A PDF

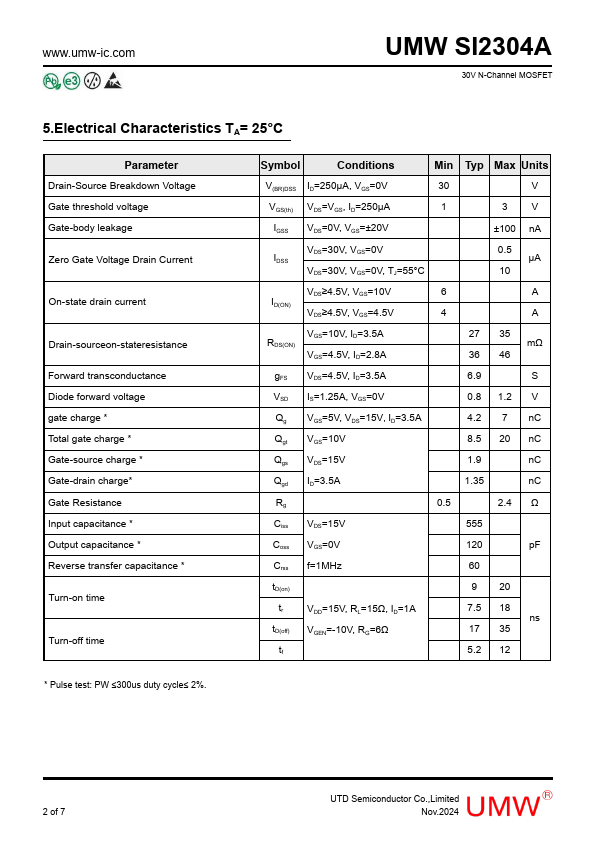

datasheet Preview Page 2

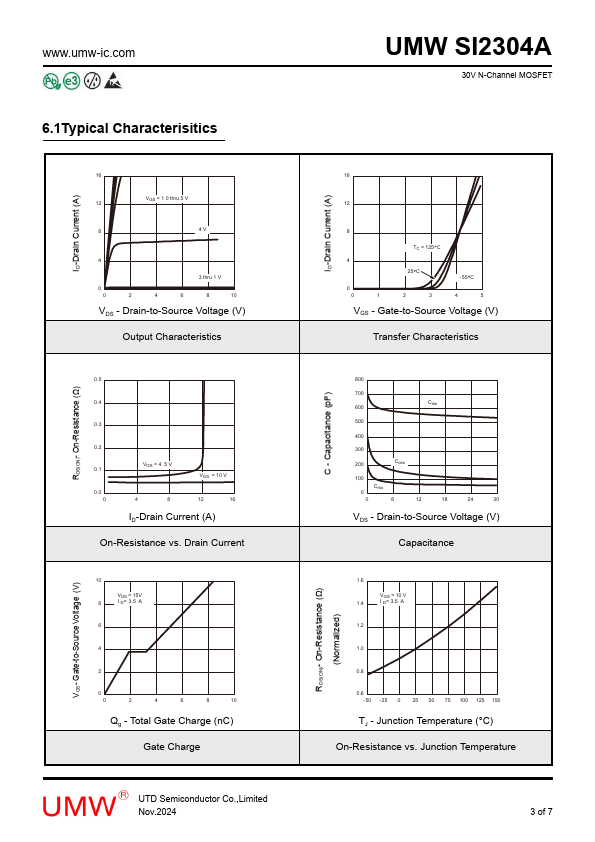

datasheet Preview Page 3

Datasheet Details

Part number	SI2304A
Manufacturer	UMW
File Size	724.53 KB
Description	30V N-ChanneI MOSFET
Datasheet	SI2304A-UMW.pdf

SI2304A Product details

Description

The SI2304A uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

Features

VDS(V)=30V RDS(ON)=27mΩ (TYP. ) @ VGS=10V RDS(ON)=36mΩ (TYP. ) @ VGS=4.5V 3.Pinning information Pin Symbol.
