SI2300A - 20V N-ChanneI MOSFET

SI2300A Datasheet Preview — Preview of SI2300A PDF

Datasheet Details

Part number	SI2300A
Manufacturer	UMW
File Size	1.76 MB
Description	20V N-ChanneI MOSFET
Datasheet	SI2300A-UMW.pdf

SI2300A Product details

Description

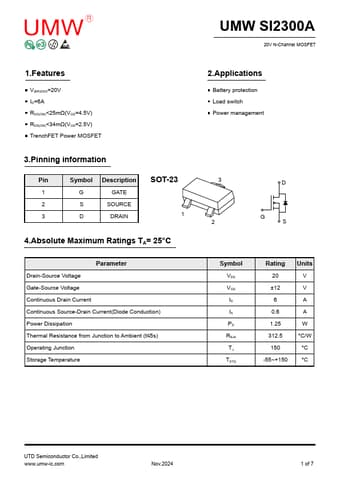

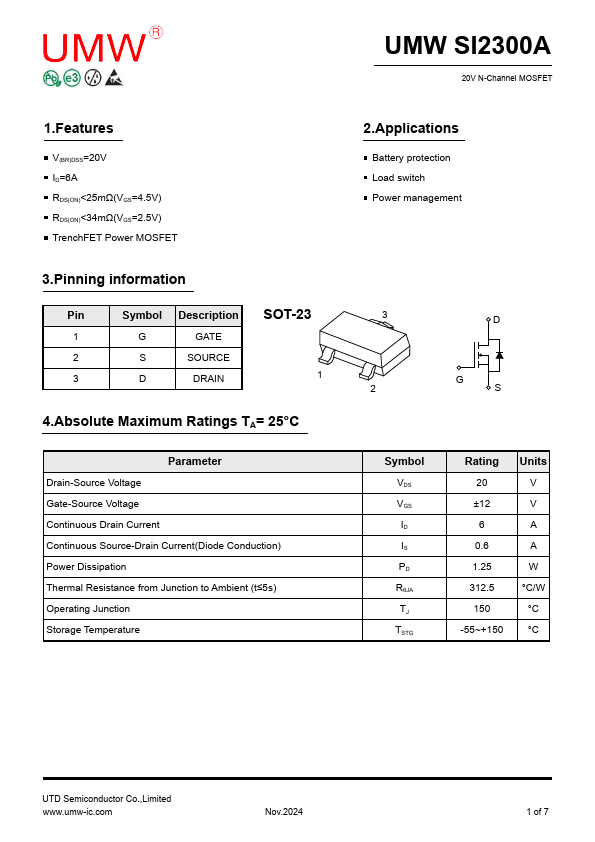

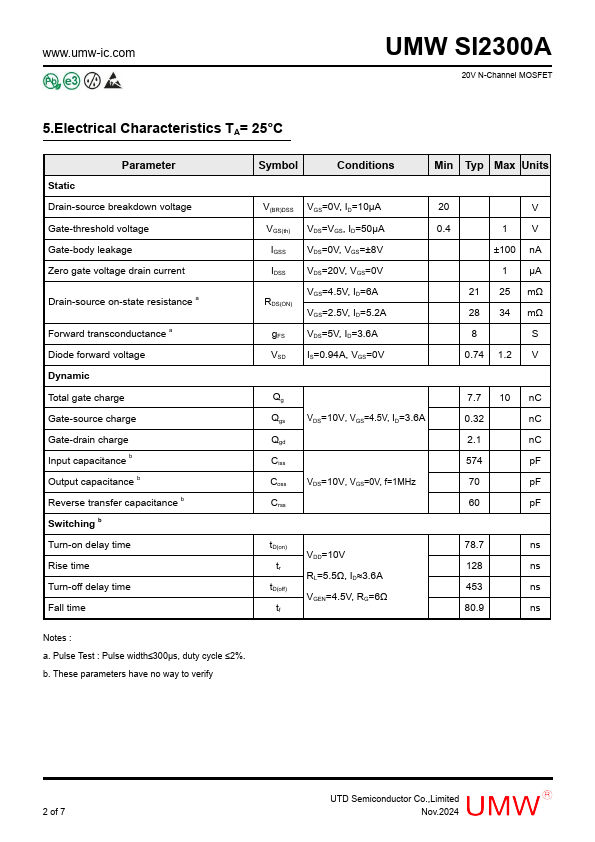

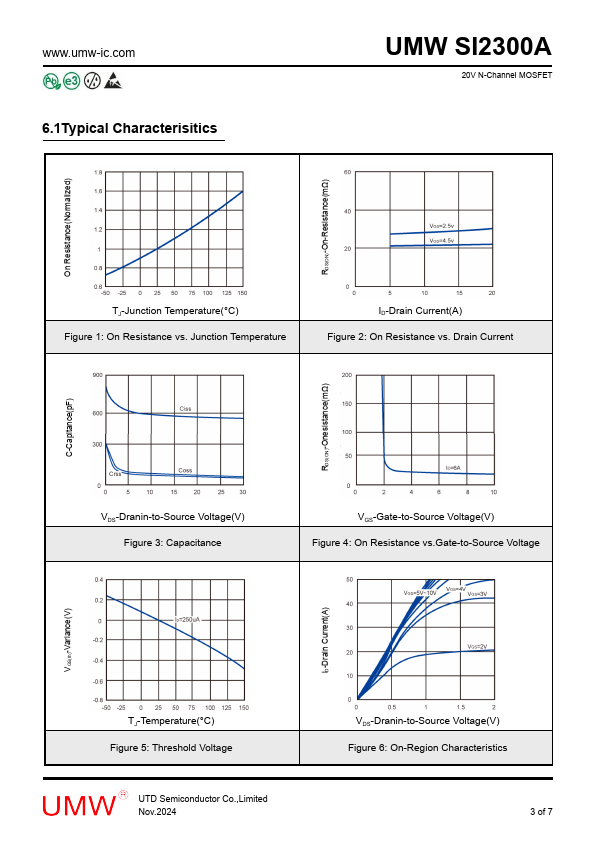

SOT-23 1 G GATE 2 S SOURCE 3 D DRAIN 1 4.Absolute Maximum Ratings TA= 25°C Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Continuous Source-Drain Current(Diode Conduction) Power Dissipation Thermal Resistance from Junction to Ambient (t≤5s) Operating Junction Storage Temperature 2.Applications Battery protection Load switch Power management 3 D G 2 S Symbol VDS VGS ID IS PD RθJA TJ TSTG Rating 20 ±12 6 0.6 1.25 312.5 150 -55~+150 Units V V A A W °

Features

V(BR)DSS=20V ID=6A RDS(ON).
